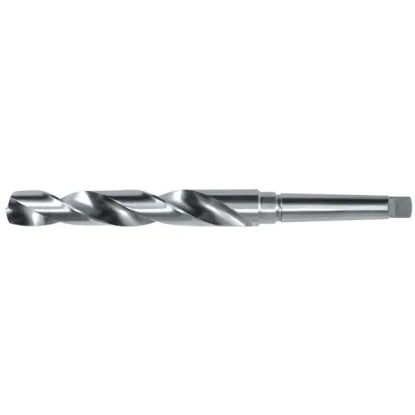

Twist drill with Morse taper shank
| TECHNICAL DATA | |
|---|---|
| Diameter | Ø24 NWKc HSS |
| Standard | DIN 345 |
| Drill type | NWKc — twist drill with taper shank |
| Material | HSS (high-speed steel) |
| Overall length l1 | 281 mm |
| Flute length l2 | 160 mm |
| Morse taper | MT3 |
| Point angle | 118° |
| Diameter tolerance | h8 |
| Cutting direction | Right-hand |
Product description and key benefits
The Ø24 mm NWKc twist drill with an MT3 taper operates in a diameter range where adequate rigidity of the spindle–tool system is required. At a diameter of 24 mm, the torque generated when cutting structural steel exceeds the capacity of a typical drill chuck — the Morse taper transmits it directly to the spindle. With a flute length of 160 mm, the Ø24 Morse taper drill allows drilling in plates and sections up to 145 mm thick.
The Ø24 Morse taper drill is used in machinery manufacturing and repair plants for holes in structural components with more demanding dimensional requirements. Typical applications: holes for M22–M30 bolts, seats for bushings and pins. H12 tolerance (Ø24.000–Ø24.210 mm); H7 requires reaming.
Dimension table for all Morse tapers MT0–MT6
| Taper | Diameter D [mm] | Length [mm] |
|---|---|---|
| MT0 | 9.045 | 49.8 |
| MT1 | 12.065 | 53.5 |
| MT2 | 17.780 | 64.0 |
| MT3 | 23.825 | 80.5 |
| MT4 | 31.267 | 117.5 |
| MT5 | 44.399 | 149.5 |
| MT6 | 63.348 | 210.0 |
REDUCTION SLEEVES COMPATIBLE WITH THE Ø24 MM DRILL BIT:
| ✓ | MT3 → MT4 — for a spindle with an MT4 socket |
| ✓ | MT3 → MT5 — for a spindle with an MT5 socket |
| ✓ | MT3 drill drift — for removing the drill bit from the spindle |
Recommended machining conditions for a diameter of Ø24 mm
| ISO symbol | Workpiece material | Vc [m/min] | f [mm/rev] | n [rpm] | Vf [mm/min] |
|---|---|---|---|---|---|
| P Steel | Structural steel up to 900 N/mm² | 11÷20 | 0.20 | 146÷265 | 29÷53 |
| K Cast iron | Gray cast iron GG20–GG30 | 13÷16 | 0.20 | 172÷212 | 34÷42 |
| N Copper and Al alloys | Cu, CuZn, Al, and alloys | 25÷28 | 0.25÷0.32 | 332÷371 | 83÷119 |
When drilling holes deeper than 72 mm (3ר24), use peck drilling with retraction every 1×D. Use ample emulsion coolant at a minimum concentration of 6–8%. Reduce the feed by 30–50%.
Range of workpiece materials and application limitations
Spot drilling is not necessary on flat surfaces in structural steels. Spotting with a 90° NC spotting drill is recommended when drilling on inclined surfaces, castings with machining allowance, and flame-cut surfaces.
The HSS drill can handle stainless steel with Vc reduced by 40% and ample coolant. For regular INOX machining, an HSSE (cobalt) drill of the same diameter is recommended.
A pillar or box-column drill press with an MT3 spindle and a power rating of at least 1.5 kW. For diameters above 25 mm, power feed is recommended — manual feed will not provide uniform pressure.
