Metal drill bit 22.75 NWKc HSS DIN 345 Baildon
0377
Diameter (mm): 22,75301 sizes of this drill
33,13,23,33,43,53,63,73,83,944,14,24,34,44,54,64,74,84,955,15,25,35,45,55,65,75,85,966,16,26,36,46,56,66,76,86,977,17,157,27,257,37,47,57,67,77,757,87,988,18,28,258,38,48,58,68,78,88,999,19,29,259,39,49,59,69,79,759,89,91010,110,210,310,410,510,610,710,7510,810,91111,111,211,2511,311,411,511,611,711,811,91212,112,212,312,412,512,612,712,812,91313,113,213,2513,313,413,513,613,713,7513,813,91414,2514,414,514,751515,2515,515,751616,2516,516,751717,2517,517,751818,2518,518,751919,2519,519,752020,2520,520,752121,2521,521,752222,2522,522,752323,2523,523,752424,2524,524,752525,2525,525,752626,2526,526,752727,2527,527,752828,2528,528,752929,2529,529,753030,2530,530,753131,2531,531,753232,2532,532,753333,2533,533,753434,2534,534,753535,2535,535,753636,2536,536,753737,2537,537,7537,83838,538,753939,2539,539,754040,2540,54141,54242,54343,54444,54545,54646,546,75474848,54949,55050,55151,55252,553545556575858,55960616263646566676869707172737475767778798081828384858687888990919293949596979899100
€30.75 tax inc.
Net price: €25.00
Description

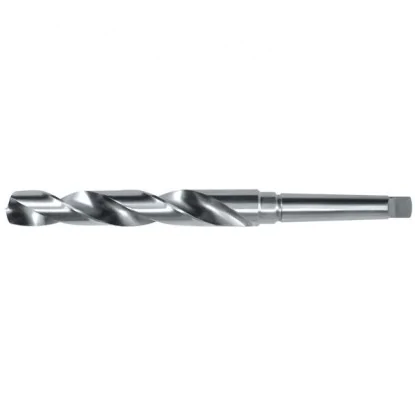

DIAMETER Ø22.75 mm
MORSE TAPER MT2
OVERALL LENGTH 253 mm
FLUTE LENGTH 155 mm
Technical specifications of the Ø22.75 mm drill bit
Twist drill with Morse taper shank
| TECHNICAL DATA | |
|---|---|
| Diameter | Ø22.75 NWKc HSS |
| Standard | DIN 345 |
| Drill type | NWKc — twist drill with taper shank |
| Material | HSS (high-speed steel) |
| Overall length l1 | 253 mm |
| Flute length l2 | 155 mm |
| Morse taper | MT2 |
| Point angle | 118° |
| Diameter tolerance | h8 |
| Cutting direction | Right-hand |
Ø22.75 mm HSS metal drill bit – Morse taper MT2
Product description and key benefits
The Ø22.75 mm HSS twist drill with an MT2 Morse taper combines versatile applications with secure spindle mounting. The self-holding taper eliminates the need for a drill chuck, which becomes a weak link in the torque transmission system at diameters above 13 mm. The Ø22.75 Morse taper drill is suitable for drilling holes for bolted connections, locating pins, and guide bushings.
Key benefits of the Ø22.75 mm metal drill bit
- MT2 taper — direct mounting — eliminates the drill chuck as a source of radial runout and tool slippage
- HSS cutting edge, 63–65 HRC — hardness that ensures stable cutting of steels with tensile strengths up to 900 N/mm² throughout the interval between sharpenings
- Right-hand helical flutes — effective chip evacuation from the cutting zone — essential when drilling holes deeper than 2×D
- Compact 253 mm design — shorter tool overhang provides greater rigidity and less vibration
- Repeated reconditioning — the HSS cutting edge can be resharpened 8–12 times while retaining its geometry — at l2 = 155 mm, the resharpening allowance is approximately 19 mm
- Sleeve compatibility — use on drilling machines with MT1 to MT3 spindles using reduction sleeves
The Ø22.75 mm Morse taper drill is chosen for holes for bolted joints in machine components and steel structures. Maintenance departments use it to restore worn holes and drill new ones during assembly. Holes within tolerance class H12 (Ø22.750–Ø22.960 mm); tighter fits are achieved with a reamer.
Morse tapers – dimensions to DIN 228
Dimension table for all Morse tapers MT0–MT6
| Taper | Diameter D [mm] | Length [mm] |
|---|---|---|
| MT0 | 9.045 | 49.8 |
| MT1 | 12.065 | 53.5 |
| MT2 | 17.780 | 64.0 |
| MT3 | 23.825 | 80.5 |
| MT4 | 31.267 | 117.5 |
| MT5 | 44.399 | 149.5 |
| MT6 | 63.348 | 210.0 |
REDUCTION SLEEVES COMPATIBLE WITH THE Ø22.75 MM DRILL BIT:
| ✓ | MT2 → MT3 — for a spindle with an MT3 socket |
| ✓ | MT2 → MT4 — for a spindle with an MT4 socket |
| ✓ | MT2 drill drift — for removing the drill bit from the spindle |
Cutting data for the Ø22.75 mm drill bit according to ISO 513
Recommended machining conditions for a diameter of Ø22.75 mm
| ISO symbol | Workpiece material | Vc [m/min] | f [mm/rev] | n [rpm] | Vf [mm/min] |
|---|---|---|---|---|---|
| P Steel | Structural steel up to 900 N/mm² | 11÷20 | 0.20 | 154÷280 | 31÷56 |
| K Cast iron | Gray cast iron GG20–GG30 | 13÷16 | 0.20 | 182÷224 | 36÷45 |
| N Copper and Al alloys | Cu, CuZn, Al, and alloys | 25÷28 | 0.25÷0.32 | 350÷392 | 88÷125 |
Mounting the drill in the spindle
Before mounting the Ø22.75 mm drill, remove chips, oil, and contaminants from the taper and spindle socket. Residue between the contact surfaces causes radial runout and can damage the spindle socket.
Material compatibility of the Ø22.75 mm drill bit
Range of workpiece materials and application limitations
✓ Structural steel (S235, S355) up to 900 N/mm²
✓ Gray and ductile cast iron (GG20, GGG40)
✓ Low-carbon and medium-alloy steel
▲ Stainless steel (Vc reduced by 40%, ample coolant)
▲ Aluminum and Al alloys (emulsion coolant required)
✗ Hardened steels above 45 HRC
Frequently asked questions about the Ø22.75 mm drill bit
It depends on the specific bolted joint. For metric coarse-thread bolts, the clearance hole diameter according to ISO 273 is 0.5–1 mm larger than the nominal thread diameter.
Use cooling with a 5–8% emulsion, do not exceed the recommended cutting parameters, and resharpen the tool before it becomes completely dull. Clean taper and spindle socket surfaces reduce runout — the main cause of accelerated wear.
In S235/S355 structural steels, spot drilling is not necessary — the 118° angle provides self-centering. Spotting with a 90° NC spotting drill is recommended when drilling on uneven or inclined surfaces, where the drill may slip away from the marked point.
Product accessories
Long reduction sleeve MK1-2 PTPb 1762
Reference: 0000006908 In stock > 10 items
€15.79
€19.42 brutto
Reduction sleeve MK4 MK2 1751 PTPa DIN 228
Reference: 1181 In stock > 10 items
€15.79
€19.42 brutto
Reduction sleeve MK5 MK2 1751 PTPa DIN 228
Reference: 4910 In stock > 10 items
€22.37
€27.51 brutto
Reviews
No customer reviews for the moment.
Shipping
All orders are delivered by courier company GLS. For orders exceeding 369 PLN gross shipping is FREE
| Courier GLS | Przelew24 / Prepayment | 14,76 zł gross | Delivery time 1 working day |
| Courier GLS | Cash on delivery | 17,26 zł gross | Lead time 1 working day |
