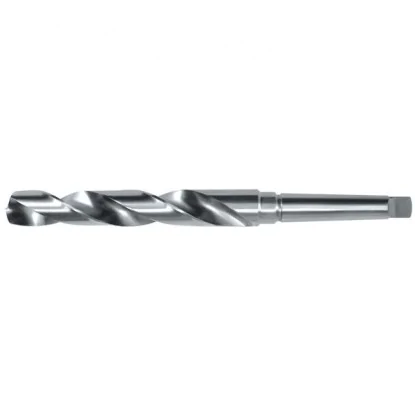

Twist drill with Morse taper shank
| TECHNICAL DATA | |
|---|---|
| Diameter | Ø22 NWKc HSS |
| Standard | DIN 345 |
| Drill type | NWKc — twist drill with taper shank |
| Material | HSS (high-speed steel) |
| Overall length l1 | 248 mm |
| Flute length l2 | 150 mm |
| Morse taper | MT2 |
| Point angle | 118° |
| Diameter tolerance | h8 |
| Cutting direction | Right-hand |
Product description and key benefits
The Ø22 mm twist drill with an MT2 taper requires secure mounting in the spindle due to the cutting forces in structural steel. The self-holding Morse taper conforming to DIN 345 meets this requirement. The compact design of the Ø22 Morse taper drill reduces overhang and associated vibration.
The Ø22 mm Morse taper drill is chosen for holes for bolted joints in machine components and steel structures. Maintenance departments use it to restore worn holes and drill new ones during assembly. Holes within tolerance class H12 (Ø22.000–Ø22.210 mm); tighter fits are achieved with a reamer.
Dimension table for all Morse tapers MT0–MT6
| Taper | Diameter D [mm] | Length [mm] |
|---|---|---|
| MT0 | 9.045 | 49.8 |
| MT1 | 12.065 | 53.5 |
| MT2 | 17.780 | 64.0 |
| MT3 | 23.825 | 80.5 |
| MT4 | 31.267 | 117.5 |
| MT5 | 44.399 | 149.5 |
| MT6 | 63.348 | 210.0 |
REDUCTION SLEEVES COMPATIBLE WITH THE Ø22 MM DRILL BIT:
| ✓ | MT2 → MT3 — for a spindle with an MT3 socket |
| ✓ | MT2 → MT4 — for a spindle with an MT4 socket |
| ✓ | MT2 drill drift — for removing the drill bit from the spindle |
Recommended machining conditions for a diameter of Ø22 mm
| ISO symbol | Workpiece material | Vc [m/min] | f [mm/rev] | n [rpm] | Vf [mm/min] |
|---|---|---|---|---|---|
| P Steel | Structural steel up to 900 N/mm² | 11÷20 | 0.20 | 159÷289 | 32÷58 |
| K Cast iron | Gray cast iron GG20–GG30 | 13÷16 | 0.20 | 188÷231 | 38÷46 |
| N Copper and Al alloys | Cu, CuZn, Al, and alloys | 25÷28 | 0.25÷0.32 | 362÷405 | 90÷130 |
At a diameter of 22 mm, the volume of chips removed increases significantly — the helical flutes must evacuate more material per centimeter of depth. Use an emulsion with a concentration of 6–8% at a minimum delivery rate of 3 l/min. Without pressurized cooling, limit the depth of each pass to 66 mm.
Range of workpiece materials and application limitations
A pillar or box-column drilling machine with an MT2 spindle and a minimum power rating of 0.75–1.5 kW. Bench drilling machines with a drill chuck are not recommended — they cannot transmit the torque generated at a diameter of 22 mm.
It depends on the specific bolted joint. For metric coarse-thread bolts, the clearance hole diameter according to ISO 273 is 0.5–1 mm larger than the nominal thread diameter.
Use cooling with a 5–8% emulsion, do not exceed the recommended cutting parameters, and resharpen the tool before it becomes completely dull. Clean taper and spindle socket surfaces reduce runout — the main cause of accelerated wear.
