Die M12X0.5 HSS DIN 22 568 Poland
0000005624
Thread size: M12x0,5188 sizes of this die
M1x0,2M2x0,25M3x0,25M3x0,35M4x0,5M4x0,6M4,5x0,5M5x0,5M5x0,75M5,5x0,5M6x0,5M6x0,75M7x0,5M7x0,75M8x0,5M8x0,75M8x1M9x0,5M9x0,75M9x1M10x0,5M10x0,75M10x1M10x1,25M11x0,5M11x0,75M11x1M11x1,25M12x0,5M12x0,75M12x1M12x1,25M12x1,5M13x1M13x1,25M14x0,75M14x1M14x1,25M14x1,5M15x1M15x1,25M15x1,5M16x0,75M16x1M16x1,25M16x1,5M16x1,75M17x0,75M17x1M17x1,5M18x0,5M18x0,75M18x1M18x1,25M18x1,5M18x2M19x1M19x1,5M20x0,75M20x1M20x1,25M20x1,5M20x2M21x1,5M22x0,75M22x1M22x1,25M22x1,5M22x1,75M22x2M23x0,75M23x1,5M24x1M24x1,25M24x1,5M24x2M24x2,5M25x1M25x1,5M25x2M26x1M26x1,5M26x2M26x2,5M27x1M27x1,5M27x2M28x1M28x1,5M28x2M29x1,5M30x1M30x1,5M30x2M30x2,5M30x3M32x1M32x1,5M32x2M32x3M33x1M33x1,5M33x2M33x3M34x1,5M34x2M34x3M35x1,5M35x3M36x1M36x1,5M36x2M36x3M37x2M38x1,5M38x2M39x1M39x1,5M39x2M39x3M40x1M40x1,5M40x2M40x3M41x1M42x1,5M42x2M42x3M42x4M43x1M43x1,5M43x2M45x1,5M45x2M45x3M45x4M46x2M48x1M48x1,5M48x2M48x3M48x4M50x1M50x1,5M50x2M50x3M51x1M52x1,5M52x2M52x3M52x4M55x1,5M56x1,5M56x2M56x3M56x4M60x1,5M60x2M60x3M62x2M63x1,5M64x1,5M64x2M64x3M64x4M65x2M68x1,5M68x2M70x1,5M70x2M72x1,5M72x4M75x1,5M75x2M76x1,5M76x4M78x2M80x1,5M80x2M82x1,5M83x2M85x2M85x3M86x2M90x2M100x1,5M125x2M145x2
€20.07 tax inc.
Net price: €16.32
Description
Technical data for the M12x0.5 die
| Technical data | |
|---|---|
| Thread size D1 | M12x0.5 |
| Thread Pitch P | 0.5 mm |
| Outside Diameter D2 | 30 mm |
| Thickness H1 | 10 mm |
| Required Shaft Diameter | 11.95 mm |

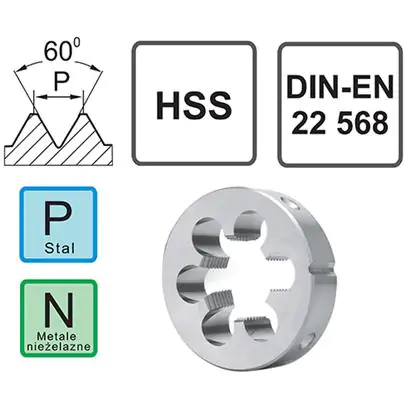

Die M12X0.5 HSS DIN 22568 Poland – ultra-precise metric fine thread
Producing external threads with a diameter of 12 mm and an ultra-fine pitch of 0.5 mm on components requiring the highest dimensional accuracy. M12X0.5 metric die made of high-speed steel (HSS) hardened to 64 HRC in accordance with DIN 22568 (Deutsches Institut für Normung – German Institute for Standardization) ensures dimensional repeatability in precision engineering. The tool is intended for machine shops, toolrooms, and facilities manufacturing precision structural components from structural steel.
Key advantages of the M12X0.5 round die
- HSS hardened to 64 HRC – long-lasting cutting edge sharpness essential for cutting ultra-fine threads
- Ultra-fine thread with a 0.5 mm pitch – the maximum number of threads per unit length provides the highest connection strength and leak tightness
- Tolerance class 6g according to DIN 22568 – universal clearance fit for precision mechanical applications
- Material range – effective thread cutting in steels with tensile strengths up to 800 MPa and in aluminum alloys
- Solid construction – the solid body construction ensures symmetrical cutting of ultra-fine threads without deformation
Precision engineering specialists use the M12X0.5 threading die in the manufacture of measuring equipment, inspection instruments, and adjustment mechanisms. The tool is used in the optical industry, medical equipment, and machine tools requiring ultra-precise threaded connections. Choose a solution for the most demanding precision applications.
Frequently asked questions
Chamfer the end of the rod at 45°, secure the workpiece to eliminate vibration, and guide the die perpendicular to the axis. Turn with minimal pressure, reversing half a turn after each full turn and using a specialized lubricant.
The tool performs well in structural steels with a maximum tensile strength of 800 MPa, aluminum alloys, and brass. Do not use it in materials with a hardness exceeding 40 HRC.
Tolerance 6g specifies a universal level of precision with assembly clearance, allowing nuts to be screwed on freely. It is the most commonly used class in precision engineering and industrial applications.
