Die M48X2 HSS DIN 22 568
0000003004
Thread size: M48x2188 sizes of this die
M1x0,2M2x0,25M3x0,25M3x0,35M4x0,5M4x0,6M4,5x0,5M5x0,5M5x0,75M5,5x0,5M6x0,5M6x0,75M7x0,5M7x0,75M8x0,5M8x0,75M8x1M9x0,5M9x0,75M9x1M10x0,5M10x0,75M10x1M10x1,25M11x0,5M11x0,75M11x1M11x1,25M12x0,5M12x0,75M12x1M12x1,25M12x1,5M13x1M13x1,25M14x0,75M14x1M14x1,25M14x1,5M15x1M15x1,25M15x1,5M16x0,75M16x1M16x1,25M16x1,5M16x1,75M17x0,75M17x1M17x1,5M18x0,5M18x0,75M18x1M18x1,25M18x1,5M18x2M19x1M19x1,5M20x0,75M20x1M20x1,25M20x1,5M20x2M21x1,5M22x0,75M22x1M22x1,25M22x1,5M22x1,75M22x2M23x0,75M23x1,5M24x1M24x1,25M24x1,5M24x2M24x2,5M25x1M25x1,5M25x2M26x1M26x1,5M26x2M26x2,5M27x1M27x1,5M27x2M28x1M28x1,5M28x2M29x1,5M30x1M30x1,5M30x2M30x2,5M30x3M32x1M32x1,5M32x2M32x3M33x1M33x1,5M33x2M33x3M34x1,5M34x2M34x3M35x1,5M35x3M36x1M36x1,5M36x2M36x3M37x2M38x1,5M38x2M39x1M39x1,5M39x2M39x3M40x1M40x1,5M40x2M40x3M41x1M42x1,5M42x2M42x3M42x4M43x1M43x1,5M43x2M45x1,5M45x2M45x3M45x4M46x2M48x1M48x1,5M48x2M48x3M48x4M50x1M50x1,5M50x2M50x3M51x1M52x1,5M52x2M52x3M52x4M55x1,5M56x1,5M56x2M56x3M56x4M60x1,5M60x2M60x3M62x2M63x1,5M64x1,5M64x2M64x3M64x4M65x2M68x1,5M68x2M70x1,5M70x2M72x1,5M72x4M75x1,5M75x2M76x1,5M76x4M78x2M80x1,5M80x2M82x1,5M83x2M85x2M85x3M86x2M90x2M100x1,5M125x2M145x2
€100.34 tax inc.
Net price: €81.58
Description
Technical data for the M48x2 die
| Technical data | |
|---|---|
| Thread size D1 | M48x2 |
| Thread Pitch P | 2 mm |
| Outside Diameter D2 | 90 mm |
| Thickness H1 | 22 mm |
| Number of Chip Holes | 7 |
| Required Shaft Diameter | 47.82 mm |

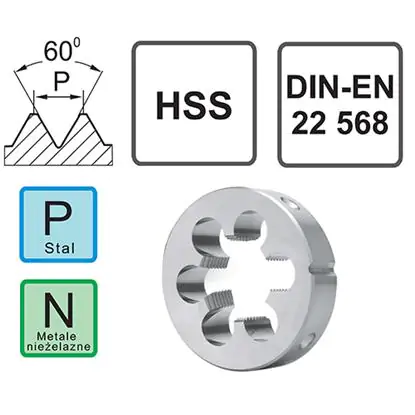

M48X2 HSS DIN 22568 die – cutting large-diameter fine threads
Professional cutting of external threads with a diameter of 48 mm and a fine pitch of 2 mm on structural and machine components. M48X2 metric die made of high-speed steel (HSS) with a hardness of 64 HRC meets the requirements of DIN 22568 (Deutsches Institut für Normung – German Institute for Standardization) and delivers precise results in heavy industry. Designed for mechanical workshops, manufacturing plants, and maintenance departments servicing large steel structures.
Key advantages of the M48X2 round die
- HSS hardened to 64 HRC – maximum load resistance when threading components with large cross sections under industrial conditions
- Fine thread with a 2 mm pitch – provides increased connection strength and improved sealing compared to a standard M48X5 thread
- Tolerance class 6g according to DIN 22568 – universal clearance fit for large diameters in machinery applications
- Material compatibility – effective cutting in steels with tensile strengths up to 800 MPa and in gray cast iron
- Solid round construction – uniform cutting forces eliminate the risk of thread deformation at large diameters
Machinery industry specialists use the M48X2 threading die in the production of spindles, drive shafts, and large hydraulic components. The tool is suitable for the shipbuilding and mining industries and for repairing heavy industrial machinery. Choose a solution for the most demanding structural projects.
Frequently asked questions
With proper lubrication and regular cleaning, the tool lasts from 150 to 250 threading cycles in structural steel. Dry operation reduces tool life by up to 60 percent, so ample lubrication is essential.
Yes, for superficial damage, but deeper defects require boring to a larger diameter. The die can correct minor inaccuracies and restore the proper thread geometry in the surface layer of the material.
Choose a fine thread for high-pressure hydraulics, precision machine connections, or when thread length is limited. More threads per centimeter provide better sealing and greater mechanical strength.
