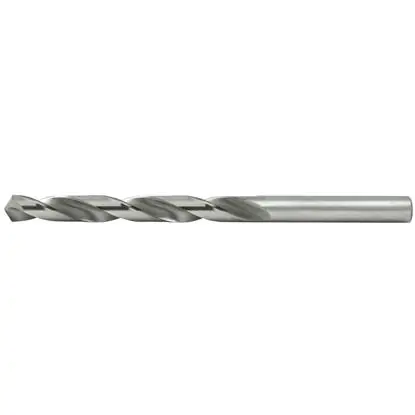

HSSE 2 cobalt metal drill bit DIN 338
11543
Diameter (mm): 2115 sizes of this drill
0,30,40,50,60,70,80,911,11,21,31,41,51,61,71,81,922,12,22,32,42,52,62,72,82,933,13,23,33,43,53,63,73,83,944,14,24,34,44,54,64,74,84,955,15,25,35,45,55,65,75,85,966,16,26,36,46,56,66,76,86,977,17,27,37,47,57,67,77,87,988,18,28,38,48,58,68,78,999,19,29,39,49,59,69,79,89,91010,110,210,310,410,510,610,81111,211,311,511,81212,112,212,512,813
€0.65 tax inc.
Net price: €0.53
Description
Technical data for the Ø2 mm cobalt drill bit
| Technical data | |
|---|---|
| Working diameter of drill d | Ø2 mm |
| Overall length l1 | 49 mm |
| Flute length l2 | 24 mm |
- Drill bit manufactured according to DIN-338
- Suitable for drilling materials up to 37 HRC
- 130° point angle adapted for drilling INOX
- Made from the finest grade of HSS-E high-speed steel with 5% added cobalt
- Produces a hole with an h8 tolerance
- Low hole surface roughness
Cutting data for the Ø2 mm HSSE NWKa drill bit
| Material | Cutting speed Vc [m/min] | Feed per revolution f [mm] | Spindle speed n [rpm] | Total feed rate [mm/min] |
|---|---|---|---|---|
| PSteel | 20 | 0.05 | 3185 | 159 |
| MStainless steel | 10 | 0.05 | 1592 | 80 |
| KCast iron | 15 | 0.05 | 2389 | 119 |
| NAluminum and nonferrous materials | 34 | 0.06 | 5414 | 271 |
May be useful
Cutting parameters calculator
Ø2 mm Inox cobalt metal drill bit
2 mm cobalt drill bit for metal HSSE Inox. High-quality professional twist drill with a smooth straight shank for producing through holes and blind holes with a diameter of 2 mm. The drill is designed for all professional applications, including operation under very demanding conditions. It is made of special molybdenum high-speed steel HSSE with 5% cobalt added. This steel composition provides very high cutting performance, particularly high machining productivity, increased precision, and greater resistance to potential cutting edge damage during operation. Cobalt drill bits are very hard and durable, withstanding the very high temperatures (up to 670°C) generated during cutting at very high speeds. Our tools are manufactured to the NWKa, DIN 338 dimensional standard. 2 mm cobalt drill bits for metal are recommended for conventional machine tools, as well as modern CNC machine tools.
Product accessories
Reviews
No customer reviews for the moment.
Shipping
All orders are delivered by courier company GLS. For orders exceeding 369 PLN gross shipping is FREE
| Courier GLS | Przelew24 / Prepayment | 14,76 zł gross | Delivery time 1 working day |
| Courier GLS | Cash on delivery | 17,26 zł gross | Lead time 1 working day |
