HSSE 6.2 cobalt metal drill bit DIN 338
11584
Diameter (mm): 6,2115 sizes of this drill
0,30,40,50,60,70,80,911,11,21,31,41,51,61,71,81,922,12,22,32,42,52,62,72,82,933,13,23,33,43,53,63,73,83,944,14,24,34,44,54,64,74,84,955,15,25,35,45,55,65,75,85,966,16,26,36,46,56,66,76,86,977,17,27,37,47,57,67,77,87,988,18,28,38,48,58,68,78,999,19,29,39,49,59,69,79,89,91010,110,210,310,410,510,610,81111,211,311,511,81212,112,212,512,813
€2.43 tax inc.
Net price: €1.97
Description
Technical data for the Ø6.2 cobalt drill bit
| Technical data | |
|---|---|
| Working diameter of drill d | Ø6.2 mm |
| Overall length l1 | 101 mm |
| Flute length l2 | 63 mm |
- Drill bit manufactured according to DIN-338
- Suitable for drilling materials up to 37 HRC
- 130° point angle adapted for drilling INOX
- Made from the finest grade of HSS-E high-speed steel with 5% added cobalt
- Produces a hole with an h8 tolerance
- Low hole surface roughness
Cutting data for the Ø6.2 mm HSSE NWKa drill bit
| Material | Cutting speed Vc [m/min] | Feed per revolution f [mm] | Spindle speed n [rpm] | Total feed rate [mm/min] |
|---|---|---|---|---|
| PSteel | 20 | 0.08 | 1062 | 85 |
| MStainless steel | 10 | 0.08 | 531 | 42 |
| KCast iron | 15 | 0.08 | 796 | 64 |
| NAluminum and nonferrous materials | 34 | 0.1 | 1805 | 181 |
May be useful
Cutting parameters calculator

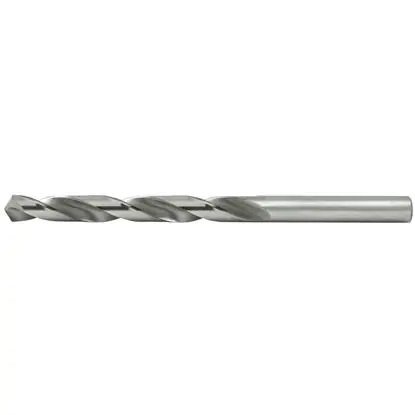

Ø6.2 Inox cobalt drill bit for metal
6.2 mm cobalt drill bit for metal HSSE Inox. Twist drill with a smooth straight shank for professional drilling of through holes and blind holes with a diameter of 6.2 mm. It is manufactured to the NWKa, DIN 338 dimensional standard from special HSSE cobalt high-speed steel with 5% cobalt. This steel gives the drill excellent durability when machining very hard materials and allows it to retain its properties even at the high temperatures generated during high-speed drilling. The addition of cobalt increases the drill's resistance to all types of mechanical damage, including breakage, cracking, and cutting-edge spalling. Its properties make the drill suitable for professional machining of hard components in large metalworking facilities and workshops. 6.2 mm cobalt drill bit for metal is suitable for conventional drilling machines, milling machines, lathes, and CNC machine tools.
Product accessories
Reviews
No customer reviews for the moment.
Shipping
All orders are delivered by courier company GLS. For orders exceeding 369 PLN gross shipping is FREE
| Courier GLS | Przelew24 / Prepayment | 14,76 zł gross | Delivery time 1 working day |
| Courier GLS | Cash on delivery | 17,26 zł gross | Lead time 1 working day |
