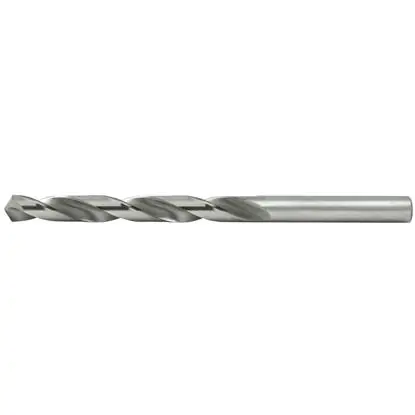

HSSE 2.8 cobalt metal drill bit DIN 338
11551
Diameter (mm): 2,8115 sizes of this drill
0,30,40,50,60,70,80,911,11,21,31,41,51,61,71,81,922,12,22,32,42,52,62,72,82,933,13,23,33,43,53,63,73,83,944,14,24,34,44,54,64,74,84,955,15,25,35,45,55,65,75,85,966,16,26,36,46,56,66,76,86,977,17,27,37,47,57,67,77,87,988,18,28,38,48,58,68,78,999,19,29,39,49,59,69,79,89,91010,110,210,310,410,510,610,81111,211,311,511,81212,112,212,512,813
€0.81 tax inc.
Net price: €0.66
Description
Technical data for the Ø2.8 cobalt drill bit
| Technical data | |
|---|---|
| Working diameter of drill d | Ø2.8 mm |
| Overall length l1 | 61 mm |
| Flute length l2 | 33 mm |
- Drill bit manufactured according to DIN-338
- Suitable for drilling materials up to 37 HRC
- 130° point angle adapted for drilling INOX
- Made from the finest grade of HSS-E high-speed steel with 5% added cobalt
- Produces a hole with an h8 tolerance
- Low hole surface roughness
Cutting data for the Ø2.8 mm HSSE NWKa drill bit
| Material | Cutting speed Vc [m/min] | Feed per revolution f [mm] | Spindle speed n [rpm] | Total feed rate [mm/min] |
|---|---|---|---|---|
| PSteel | 20 | 0.05 | 3185 | 159 |
| MStainless steel | 10 | 0.05 | 1592 | 80 |
| KCast iron | 15 | 0.05 | 2389 | 119 |
| NAluminum and nonferrous materials | 34 | 0.06 | 5414 | 271 |
May be useful
Cutting parameters calculator
Ø2.8 Inox cobalt drill bit for metal
2.8 mm cobalt drill bit for metal HSSE Inox. A professional twist drill with a plain straight shank, manufactured in accordance with the Polish dimensional standard NWKa and its earlier counterpart DIN 338. It is designed for machining very hard materials such as alloy steels, stainless steel, acid-resistant steel, heat-resistant steel, gray and ductile cast iron, and cast steel. The drill features a point angle of 118°, 2 central cutting edges, ground cutting edges and special flutes for chip evacuation up the hole. 2.8 mm cobalt drill bit for metal is manufactured from special high-grade HSSE high-speed steel with 5% cobalt. This component significantly increases cutting edge durability and hardness, making the drill more resistant to demanding cutting conditions. The HSSE drill enables very high cutting productivity, significantly reducing machining time and improving the utilization of available machine tools (drilling machines, lathes, milling machines and CNC machine tools).
