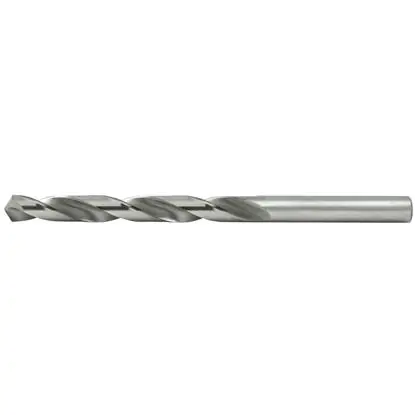

HSSE 7.9 cobalt metal drill bit DIN 338
13290
Diameter (mm): 7,9115 sizes of this drill
0,30,40,50,60,70,80,911,11,21,31,41,51,61,71,81,922,12,22,32,42,52,62,72,82,933,13,23,33,43,53,63,73,83,944,14,24,34,44,54,64,74,84,955,15,25,35,45,55,65,75,85,966,16,26,36,46,56,66,76,86,977,17,27,37,47,57,67,77,87,988,18,28,38,48,58,68,78,999,19,29,39,49,59,69,79,89,91010,110,210,310,410,510,610,81111,211,311,511,81212,112,212,512,813
€2.75 tax inc.
Net price: €2.24
Description
Technical data for the Ø7.9 cobalt drill bit
| Technical data | |
|---|---|
| Working diameter of drill d | Ø7.9 mm |
| Overall length l1 | 117 mm |
| Overall length L | 75 mm |
Cutting data for the Ø7.9 mm HSSE NWKa drill bit
| Material | Cutting speed Vc [m/min] | Feed per revolution f [mm] | Spindle speed n [rpm] | Total feed rate [mm/min] |
|---|---|---|---|---|
| PSteel | 20 | 0.08 | 806 | 64 |
| MStainless steel | 10 | 0.08 | 403 | 32 |
| KCast iron | 15 | 0.08 | 605 | 48 |
| NAluminum and nonferrous materials | 34 | 0.1 | 1371 | 137 |
May be useful
Cutting parameters calculator
Ø7.9 Inox cobalt drill bit for metal
7.9 mm cobalt drill bit for metal HSSE Inox. Advanced straight-shank twist drill bit with a diameter of 7.9 mm, intended for professional machining of exceptionally durable and difficult-to-machine materials. The drill bits feature 2 central cutting edges, a 118° point angle, helical flutes for chip evacuation up the drilled hole, and strong, ground cutting edges that withstand impacts and lateral forces.
A clear advantage of these drill bits is that they are made from special HSSE cobalt high-speed steel. This steel contains 5% added cobalt, which significantly improves drilling capabilities under demanding conditions. The drill bits withstand high-speed drilling, which generates high temperatures (up to 670°). Even under such extreme conditions, the drill cutting edges do not suffer breakage, cracking, chipping, or other damage. The drill bits are suitable for machining alloy steels, stainless steel, heat-resistant steel, acid-resistant steel, cast iron, and cast steel. 7.9 mm cobalt drill bit for metal is intended for drilling machines, milling machines, and lathes, as well as CNC machine tools.
Product accessories
Metal drill bit 7.9 long 156/109 HSS DIN 340
Reference: 0212 In stock > 10 items
€1.74
€2.14 brutto
HSSE 7.7 cobalt metal drill bit DIN 338
Reference: 0000011286 In stock > 10 items
€3.03
€3.72 brutto
