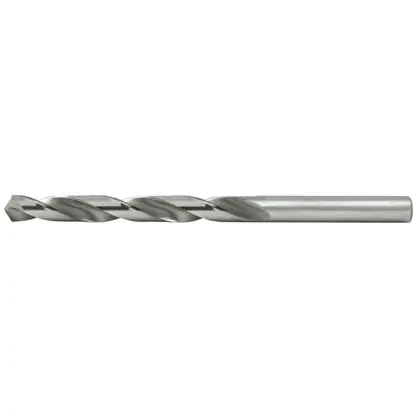

HSSE 8.2 cobalt metal drill bit DIN 338
11594
Diameter (mm): 8,2115 sizes of this drill
0,30,40,50,60,70,80,911,11,21,31,41,51,61,71,81,922,12,22,32,42,52,62,72,82,933,13,23,33,43,53,63,73,83,944,14,24,34,44,54,64,74,84,955,15,25,35,45,55,65,75,85,966,16,26,36,46,56,66,76,86,977,17,27,37,47,57,67,77,87,988,18,28,38,48,58,68,78,999,19,29,39,49,59,69,79,89,91010,110,210,310,410,510,610,81111,211,311,511,81212,112,212,512,813
€4.05 tax inc.
Net price: €3.29
Description
Technical data for the Ø8.2 cobalt drill bit
| Technical data | |
|---|---|
| Working diameter of drill d | Ø8.2 mm |
| Overall length l1 | 117 mm |
| Flute length l2 | 75 mm |
- Drill bit manufactured according to DIN-338
- Suitable for drilling materials up to 37 HRC
- 130° point angle adapted for drilling INOX
- Made from the finest grade of HSS-E high-speed steel with 5% added cobalt
- Produces a hole with an h8 tolerance
- Low hole surface roughness
Cutting data for the Ø8.2 mm HSSE NWKa drill bit
| Material | Cutting speed Vc [m/min] | Feed per revolution f [mm] | Spindle speed n [rpm] | Total feed rate [mm/min] |
|---|---|---|---|---|
| PSteel | 20 | 0.1 | 796 | 80 |
| MStainless steel | 10 | 0.1 | 398 | 40 |
| KCast iron | 15 | 0.1 | 597 | 60 |
| NAluminum and nonferrous materials | 34 | 0.12 | 1354 | 162 |
May be useful
Cutting parameters calculator
Ø8.2 Inox cobalt drill bit for metal
8.2 mm cobalt drill bit for metal HSSE Inox. High-quality straight-shank twist drill with excellent cutting performance. Manufactured to NWKa, DIN 338 from advanced HSSE high-speed steel with approximately 5% cobalt. This steel makes the drills highly resistant to mechanical damage when drilling under demanding conditions. In particular, they offer high resistance to the very high temperatures (up to 670°C) generated when drilling at very high speeds. This reduces machining time and improves utilization of available workstations. The drills also offer high resistance to breakage, cracking, chipping, and even dulling. This extends drill service life while reducing machining costs. 8.2 mm cobalt drill bits for metal are suitable for conventional drilling machines, milling machines, lathes, and computer numerically controlled machine tools.
