Drill fi 1 mm for metal - HSS DIN 338 NWKa - nr. 2
search
  • Drill fi 1 mm for metal - HSS DIN 338 NWKa - nr. 2
  • Drill fi 1 mm for metal - HSS DIN 338 NWKa - nr. 3

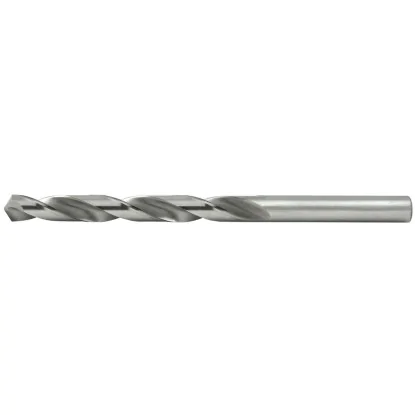

HSS DIN 338 1 mm metal drill bit

Artykuły Techniczne Artykuły Techniczne
0000007092
€0.39 tax inc.

Net price: €0.32

Instant Shipping
In stock > 10 pcs.
In stock > 10 pcs.

Instant Shipping

Call and order: (44) 755-04-05

Description

Technical data of metal drill fi 1

Technical data
Working diameter of drill d fi 1 mm
Overall length l1 34 mm
Length of working part l2 12 mm
wiertło do metalu - rysunek techniczny

  • Drill bit made according to DIN-338
  • Possible drilling to a hardness of 35 HRC
  • Blade angle of 118 degrees suitable for drilling in steel, cast steel
  • Made of the best grade of high speed steel HSS ( High speed steel )
  • Makes a hole in h8 tolerance
  • Low roughness of the hole
Wiertło do metalu - kąt ostrza 118 stopni

Cutting parameters of drill fi 1 mm HSS NWKa

ISO symbolMaterialCutting speed Vc [m/min]Feed per revolution f [mm]Revolutions n [obr/min]Total feed rate [mm/min]
P Steel 14-25 0,05 4459 223
K Cast iron 10-18 0,05 3185 159

May be useful

Cutting parameters calculator

Drill fi 1 with cylindrical shank

HSS DIN 3381 mm metal drill bit is designed for drilling nominal holes in structural steels, cast iron and non-ferrous alloys; in workshop realities, also used as fi 1 mm metal drill bit, it provides a stable cutting path and maintains the IT12 grade dimension.

The nominal diameter is 1 mm. The 118-degree apex angle balances cutting forces and facilitates a smooth entry into the material, while helical, precision-ground grooves promote continuous chip evacuation in the right cutting direction. The drills are designed for conventional lathes, milling and drilling machines, as well as specialized CNC-controlled machine tools. The high-purity high-speed steel core is characterized by wear resistance and edge stability. Length execution according to DIN 338 (normal length) and cylindrical shank are conducive to work in standard chucks. Emulsion or oil mist cooling, micrometer feed, high RPM and rigid clamping are recommended.

  • Secure entry into the material - 118-degree geometry reduces drift at the start and stabilizes the drilling axis.
  • Repeatable IT12 grade - dimensional stability maintains fi 1 mm drill bit for steel with properly selected speeds, feed and rigid clamping.
  • Uniform hole surface - polished chip channels reduce friction, which promotes low wall roughness.
  • Edge durability - homogeneous high-speed steel slows wear in unit and short-run cycles.

Compliance with DIN 338 and reference to EN ISO 286 enable the holes obtained to be qualified for workshop fits; consequently, the fi 1 mm metal drill provides predictable diameter, alignment and a clean exit edge in typical micromachining tasks.

Read more

Product accessories

Reviews

No customer reviews for the moment.

Add a review about the product

HSS DIN 338 1 mm metal drill bit

HSS DIN 338 1 mm metal drill bit

Shipping

All orders are delivered by courier company GLS. For orders exceeding 369 PLN gross shipping is FREE

Courier GLS Przelew24 / Prepayment 14,76 zł gross Delivery time 1 working day
Courier GLS Cash on delivery 17,26 zł gross Lead time 1 working day
