Net price: €47.37
Description
| Technical data | |
|---|---|
| Nominal diameter d1 mm | M26 |
| Thread pitch P mm | 2 mm |
| Overall length l1 | 90 mm |
| Flute length l2 | 22 mm |
| Shank diameter d2 | 18 mm |
| Square drive size a | 14.5 mm |
| Tap drill diameter | 24 mm |
| Thread angle G | 60° |
| Tap tolerance | ISO2 6H |

Division of work in the 1–2 set
The M26x2 thread is cut into the wall of a hole with a diameter of 24 mm. The thread groove extends 1 mm into the wall. A single tap would have to cut the entire groove at once, requiring substantial hand torque and risking breakage. The set divides this work into two passes.
The drawing shows the entire set in operation. Both taps have the same shank and the same length. They differ in their chamfer, the tapered tip: No. 1 has a chamfer spanning 8 threads, while No. 2 spans only 2 threads. The detail windows at the hole wall show how the thread groove deepens after each tap.
| Tap | Chamfer | Chamfer angle | Material removed | How it works in the hole |
|---|---|---|---|---|
| No. 1 – roughing tap | long, 8 threads | 5° | the main portion of the groove | enters smoothly and establishes thread alignment |
| No. 2 – finishing tap | short, 2 threads | 20° | the remainder, to the full profile | follows the cut threads and produces the full 6H profile |

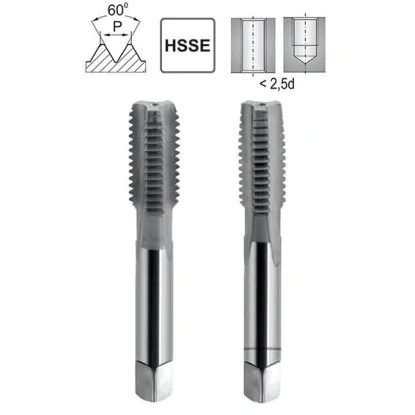

The chamfer on No. 1 is 4 times as long as the chamfer on No. 2 — the difference is immediately visible when you place them side by side. No. 1 has an incomplete thread profile; only No. 2 has the full profile. The number is also indicated on the shank: No. 1 has one ring, No. 2 has none. Keep the set together and always start with the roughing tap.
Hand tapping step by step
Drill bit 24 mm
Chamfer 8 threads
Chamfer 2 threads
Tolerance 6H
Turning sequence: half a turn clockwise, a quarter turn counterclockwise | Between taps: remove chips from the hole
Start with the hole. The drill diameter is easy to calculate: thread diameter 26 mm minus pitch 2 mm gives 24 mm. An undersized hole is a common cause of a tap twisting off in the workpiece.
The set taps both types of holes. In a through hole, the thread extends through the full material thickness. In a blind hole, cut the thread to 65 mm, or 2.5 times the thread diameter (2.5 x 26 mm, shown as 2.5D in the drawing). Drill the hole deeper than the thread. The finishing tap has a chamfer spanning 2 threads, so approx. 2 incomplete threads remain near the bottom. The extra depth below the thread accommodates them along with the chips.
Fit the roughing tap in the tap wrench and position it perpendicular to the surface. Check the angle from two sides, for example with a square. Turn half a turn clockwise, then a quarter turn counterclockwise. Reversing breaks the chip into short pieces – a slight crunch is normal. The first threads determine whether the thread will be straight.
Back out the roughing tap and remove chips from the hole. Screw the finishing tap into the cut threads by hand – it should engage them on its own. Continue turning at the same rhythm as with the roughing tap. The finishing tap removes the remaining material and cuts the groove to the full profile within tolerance 6H. When it screws in smoothly all the way, the thread is complete – check it with an M26x2 screw.
Hand Tap M26x2 DIN 2181/2 6H HSSE is designed for precision tapping of M26 fine threads in structural steels, stainless steels, and nonferrous metal alloys. High manufacturing quality and optimized cutting geometry enable the tool to produce a clean thread profile and consistent results in one-off and short-run machining.
Construction specifications: nominal diameter twenty-six millimeters; pitch two millimeters; sixty° profile according to ISO 68-1; internal thread tolerance 6H according to ISO 965; right-hand. This version is made of cobalt high-speed steel HSSE, ensuring increased heat resistance and greater cutting edge stability. Straight flutes ensure smooth chip evacuation, while the two-tap configuration according to DIN 2181/2 — starting tap (I) and finishing tap (II) — minimizes torsional loads and improves axial alignment. Excellent machining results and dimensional repeatability are supported by M26x2 Hand Tap Set, allowing a uniform thread structure to be maintained along the entire hole length.
Compliance with DIN 2181/2 (construction), ISO 68-1 (metric profile), and ISO 965 (6H tolerance) guarantees full compatibility with measuring equipment and predictable results. In workshop and industrial applications, maintained axial alignment, repeatable geometry, and high surface quality make this tool an excellent choice for precision tapping.

The 2-piece set (roughing tap + finishing tap) reduces working time; the 3-piece set (I + II + III) facilitates manual guidance in harder materials and at larger diameters such as M26.
Yes, the set can be used in both through holes and blind holes, in accordance with DIN 2181 and class 6H.
Ensure perpendicular alignment, use a tap wrench, lubricate with tapping oil, reverse every 1–2 turns to break the chip, and clean the flutes.
