Description

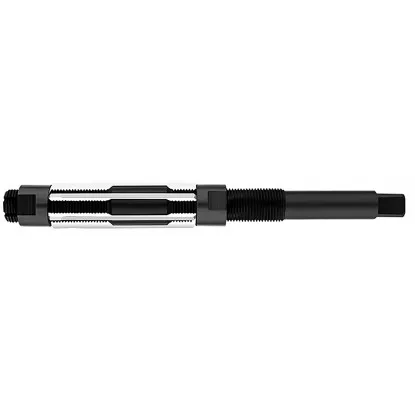

Technical data of the adjustable reamer 15-16.5 mm
| Technical data | |
|---|---|
| Diameter range Dmin-Dmax | 15-16,5 mm |
| Shank diameter d | 9,7 mm |
| Overall length L | 167,0 mm |
| Blade length l | 52,0 mm |
| Length of side of square drive k | 7,8 mm |
The 15-16.5 mm NRZe adjustable reamer designed for final countersinking in the 15-16.5 mm range provides stable, controlled cutting after drilling, while maintaining geometry and concentricity during hole reaming.
Blade adjustment is radial with micrometer step and screw lock, making it easy to set the dimension in hundredths of a millimeter with allowance for cutting clearance. A 45-degree entry chamfer stabilizes the overrun and reduces edge burr. Execution as an HSS reamer from high-speed steel ensures high wear resistance and edge stability at elevated temperatures. The achieved roughness and accuracy make it possible to achieve H7/H8 tolerances in accordance with ISO 286 in structural steels, cast iron and non-ferrous alloys; the recommended allowance of 0.10-0.30 mm should be selected according to the material and quality of the pre-hole, and the diameter measurement should be carried out after stabilizing the temperature with a two- or three-point diameter gauge.
- Precise setting - adjustment in hundredths of a millimeter and rigid locking ensure repeatability in IT7-IT8 class.
- Stable guidance - 45-degree chamfer and multi-cone geometry reduce vibration and improve smoothness of the final pass.
- Extended life - the properties of high-speed steel reduce edge wear, which reduces the frequency of sharpening and changeovers.
- Finishquality - one final pass supports H7 finishing, providing stable diameter and low roughness.
ISO 286 compliance, 45-degree entry angle and 15-16.5 mm setting range promote predictable repeatability in shop and production applications. The 15-16.5 mm NRZe adjustable reamer maintains uniform countersink and even surface texture in serial machining cycles.
