Description

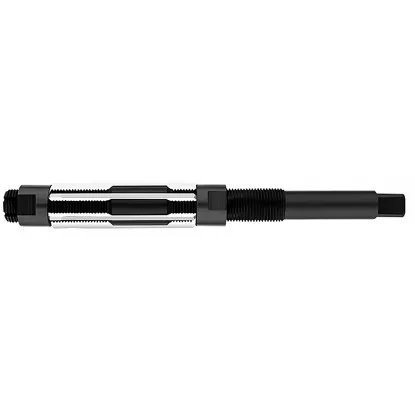

Technical data of the 8-8.7 mm adjustable reamer
| Technical data | |
|---|---|
| Diameter range Dmin-Dmax | 8-8,7 mm |
| Shank diameter d | 4,5 mm |
| Overall length L | 106,0 mm |
| Blade length l | 40,0 mm |
| Length of side of square drive k | 3,7 mm |
The 8-8.7 mm NRZe adjustable reamer for finish machining of small cylindrical holes provides diameter control and stable geometry in steel, cast iron and non-ferrous alloys when reaming H7 holes.
Radial adjustment with micrometric step and screw lock allows for dimension setting with allowance for cutting clearance; 45-degree insertion chamfer stabilizes entry and reduces burrs. Segmented slats and body are made entirely of high-grade HSS. A back relief of 6-8 degrees and a recommended allowance of 0.10-0.25 mm promote light cutting and a uniform texture. Symmetrical segment expansion and fine-pitch expansion screws facilitate repeatable setting, and the adjustable reamer design allows for simple wear compensation.
- Precise setting - Adjustment within hundredths of a millimeter makes it easy to achieve IT7-IT8 without additional transitions.
- Stable guiding - multi-blade geometry and control of radial runout of slats to 0.02 mm improve cylindricity and dimensional repeatability.
- Flexible range - the 8-8.7 reamer covers several nominal values in a single setting, reducing changeovers.
- Homogeneous surface - 45-degree chamfer and controlled relief support the achievement of Ra 0.8-1.6 µm.
Dimensional conformity referenced to ISO 286-2 (H7), and shape and position requirements are defined by EN ISO 1101; selection of allowance and coolant determines diameter stability in the finishing pass.
The 8-8.7 mm NRZe adjustable reamer provides repeatable doming, stable cylindricity and predictable surface quality over the full adjustment range.
