Description

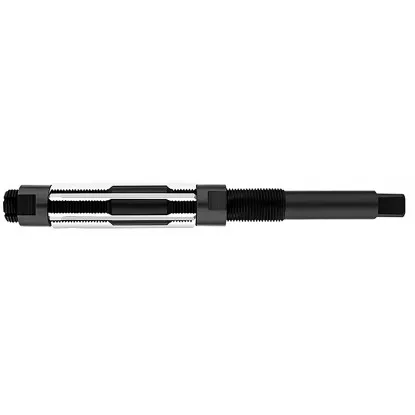

Technical data of the adjustable reamer 27-30 mm
| Technical data | |
|---|---|
| Diameter range Dmin-Dmax | 27-30 mm |
| Shank diameter d | 17.5 mm |
| Overall length L | 220.0 mm |
| Blade length l | 73,0 mm |
| Length of side of square drive k | 14 mm |
Adjustablereamer 27-30 NRZe designed for finishing diameters of 27-30 mm in steel, cast iron and non-ferrous alloys provides rigid guidance and accurate countersink in reaming H7 holes.
Segmented HSS cutting strips work in a radially spread pattern; micrometric adjustment with screw lock allows setting the dimension with allowance for cutting clearance. A 45-degree entry chamfer stabilizes guidance and reduces edge build-up, a 6-8-degree back relief reduces friction, and a recommended allowance of 0.20-0.35 mm promotes a smooth surface. The NRZe's tempered alloy steel body utilizes fine-pitch expansion screws, and the adjustable reamer design allows for smooth wear compensation over the series.
- Alignmentaccuracy - Adjustment within hundredths of a millimeter makes it easy to hit IT7-IT8.
- Uniform loading - symmetrical segment spreading reduces runout and vibration, improving cylindricity.
- Wide range - the 27-30 reamer covers several diameters in one unit, reducing changeover time.
- HSS durability - high-speed steel with high tempering resistance extends the sharpening interval.
Dimensional conformity referenced to ISO 286-2 (H7/H8), shape and position requirements according to EN ISO 1101.
The 27-30 NRZe adjustable reamer provides repeatable diameter, predictable surface texture and stable cylindricity over the full 27-30 mm adjustment range.
