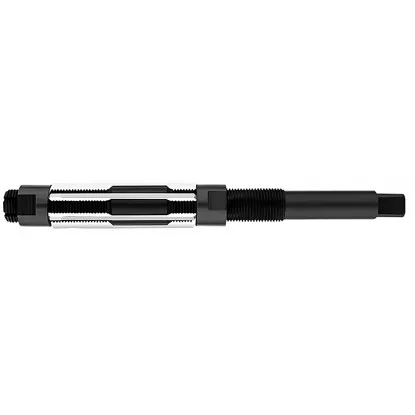

Adjustable reamer 64-74 mm NRZe

570181
€168.32 tax inc.

Net price: €136.84

Brak w magazynie
Brak w magazynie

Call and order: (44) 755-04-05

Description

Adjustable reamer 64-74 mm – adjustable diameter, 50 mm shank

Technical data – HSS blades, shank with square drive for a tap wrench

Technical data
Adjustment range64–74 mm
DesignationNRZe to PN
BladesHSS, in inclined grooves
Diameter adjustmenttwo nuts
Shank diameter50.0 mm
Shank square39 mm
Overall length400 mm
Blade length120 mm
Drivetap wrench
Adjustable reamer 64-74 mm NRZe – dimensional drawing, HSS blades, shank with square drive
Adjustable reamer 64-74 mm NRZe – dimensional drawing, HSS blades, shank with square drive

Adjustable reamer 64-74 mm NRZe finishes holes from 64 to 74 mm. Set the diameter with two nuts that move the high-speed steel (HSS) blades in the inclined slots in the body. The shank measures 50 mm and the square 39 mm – 1 mm less than on the 70-85 mm and 74-84 mm reamers. Drills in this range are available in 1 mm increments, so bore the initial hole. Operate it by hand with a tap wrench fitted to the square on the shank.

Manufacturers design adjustable blade reamers for repair and assembly work. They are useful wherever a hole needs to be fitted to the part at hand. The diameter is then set to the size of the part, rather than to the standard size series of fixed reamers.

Which size to choose: 64-74, 56-70, or 70-85 mm

The 56-70 mm reamer also covers holes from 64 to 70 mm, while the 70-85 mm reamer covers holes from 70 to 74 mm. The 74-84 mm reamer additionally covers a 74 mm hole. This reamer is 400 mm long, while the 70-85 mm reamer is 510 mm long.

How diameter adjustment works – blades and two nuts

NRZe reamer construction and measuring the diameter setting

The body has inclined grooves around its circumference, each holding an HSS blade. Two nuts, front and rear, retain the blades at both ends. Moving the blades along the grooves moves their cutting edges away from or toward the axis. This changes the cutting diameter over a range of 10 mm, from 64 to 74 mm. This is why the tool is also called an adjustable reamer.

NRZe adjustable reamer construction – blades in inclined grooves between the front and rear nuts
NRZe adjustable reamer construction – blades in inclined grooves between the front and rear nuts

Adjustment in three steps

First, loosen one nut. Then tighten the other — the blades will move to the new diameter. Finally, lock the blades by tightening the first nut. The rear nut, on the shank side, provides the main clamping force; the front nut is only snugged up. Tighten carefully. Excessive force bows the blades outward and causes the reamer to catch in the hole.

How to measure the set diameter

With an even number of blades, measure the diameter across two opposite blades using a micrometer. With an odd number, a groove lies opposite each blade, so the micrometer will read too low. In this case, use a setting ring or a hole of known diameter. Insert the reamer and expand the blades until they contact the hole wall.

How to ream step by step – tap wrench and clockwise rotation

Guidelines for using an adjustable hand reamer

Insert the reamer into the hole and apply light pressure so the blades engage the wall immediately. The tap wrench must fit the square closely to ensure smooth rotation without jerking. Align the reamer axis with the hole axis. For a longer hole, check the alignment with a square.

Hand reaming in six steps

1
Prepare the hole
0.05–0.15 mm smaller than the finished hole, e.g., 68.9 mm for 69.0 mm.
2
Set the diameter
Loosen one nut, move the blades with the other, then lock the first nut.
3
Fit the tap wrench
Fit it to the square and align the reamer with the hole axis.
4
Turn clockwise
Turn smoothly with light, even pressure.
5
Withdraw the reamer
Keep turning clockwise, including as the blades leave the hole.
✓
Check the hole
Too tight? Set a larger diameter and make a second pass.
Guidelines based on adjustable reamer manufacturers' instructions.
Hand reaming – adjustable reamer in a tap wrench, clockwise rotation
Hand reaming – adjustable reamer in a tap wrench, clockwise rotation

As the blades emerge from the far end of the hole, resistance drops suddenly. Reduce pressure at this point, but maintain the same turning speed. Otherwise, the reamer will jump through the end of the hole and leave it uneven.

▲
Never turn counterclockwise

Turning counterclockwise in the hole dulls the blades and may chip them. It can also loosen a nut and change the setting. Turn clockwise when withdrawing the tool as well; otherwise, you will scratch the hole wall.

How much material one pass removes

Reaming allowance and initial hole

This tool finishes a hole rather than drilling it. It removes a thin layer: from 0.05 to 0.15 mm on the diameter in one pass. A smaller allowance produces a smoother wall. Too little allowance is detrimental, as the blades rub against the wall instead of cutting and become dull faster.

Magnified view of the reaming allowance – initial hole and layer removed by the blades
Magnified view of the reaming allowance – initial hole and layer removed by the blades

Calculation: 69 mm hole from a 68.9 mm initial hole

Allowance on diameter = finished hole diameter 69.0 mm − initial hole diameter 68.9 mm = 0.1 mm. Half of this, or 0.05 mm, is on each wall. This layer is thinner than a sheet of paper. A reamer set to 69.0 mm will remove it in one pass.

Finished hole [mm]Initial hole [mm]Diametral allowance [mm]Layer thickness at the wall [mm]Passes
64.063.90.10.051
69.068.90.10.051
69.068.80.20.12: set to 68.9, then 69.0
74.073.90.10.051

The 68 mm drill in the range would leave a 1.0 mm allowance for a 69 mm hole. This is approximately 6.7 times the amount the blades remove in one pass. Therefore, bore the initial hole to 68.9 mm. Remove a larger allowance, e.g., 0.2 mm, in two passes: to 68.9 and 69.0 mm.

Tap wrench and lubrication – what to prepare

Tap wrench for a 39 mm square and oil suited to the material

Tap wrench No. 8

The shank square measures 39 mm. Select an adjustable tap wrench to DIN 1814, size No. 8. It accommodates squares from 16 to 40 mm and fits M25–M68 taps.

With oil or dry

Workpiece materialLubrication
Steel and cast steelcutting oil or emulsion
Aluminum alloyscutting oil or emulsion
Gray and malleable cast irondry
Bronze and brassdry

Remove chips from the reamer after use. Before adjusting the blades, also clean the body grooves so the blades move evenly.

Adjustable reamer 64-74 mm NRZe has a 50 mm shank and a 39 mm square that fits a No. 8 tap wrench. The reamer is 400 mm long, with 120 mm blades. Bore the initial hole with an allowance of 0.05 to 0.15 mm, because drills in this range are available in 1 mm increments. Always turn the reamer clockwise, including during withdrawal.

Questions about size selection, pilot holes, and operation

Frequently asked questions about hand reaming

Both cover holes from 70 to 74 mm. The 64-74 mm reamer is shorter: 400 mm long versus 510 mm. However, the 70-85 mm reamer extends to 85 mm.

Bore the initial hole to a diameter of 68.85 to 68.95 mm. A reamer set to 69.0 mm will remove this allowance in one pass. After a 68.8 mm initial hole, ream in two passes: to 68.9 and 69.0 mm.

Clockwise, just as when reaming. Clockwise rotation protects the blades and the hole wall. It also keeps the nuts in place, so the setting does not change.

Yes, at very low speed and with plenty of oil. At high speed, the hole may end up larger than the setting. Using a tap wrench provides the best control.
