Description

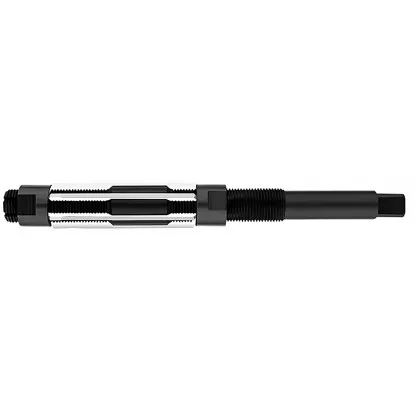

Technical data of the 8.7-9.5 mm adjustable reamer
| Technical data | |
|---|---|
| Diameter range Dmin-Dmax | 8,7-9,5 mm |
| Shank diameter d | 4,4 mm |
| Overall length L | 114.0 mm |
| Blade length l | 40.0 mm |
| Length of side of square drive k | 3,55 mm |
The 8.7-9.5 mm NRZe adjustable reamer for precision small-diameter countersinking in steel, cast iron and non-ferrous alloys provides a stable cutting path and geometry control in finishing holes.
Radial adjustment with micrometric step and screw lock allows dimension setting with allowance for cutting clearance; 45-degree entry chamfer stabilizes insertion and reduces burrs. Segmented slats and body are made entirely of high-grade HSS for edge resistance to elevated temperatures. Back relief of 6-8 degrees promotes light cutting, and the recommended allowance for finishing passes is 0.10-0.25 mm. Symmetrical segment strut and fine-point strut screws guarantee repeatable setting and easy compensation for wear during the series.
- Precise setting - adjustment to hundredths of a millimeter allows IT7-IT8 to be achieved without additional passes.
- Stable cylindricity - uniform segment loading reduces vibration and radial runout, improving dimensional repeatability.
- Surface quality - controlled 45-degree entry supports reaming of H7 holes with a roughness of typically Ra 0.8-1.6 µm.
- Diameter range - the 8.7-9.5 reamer covers several nominal values in a single setting, reducing changeovers.
Dimensional conformity referenced to ISO 286-2 (H7), and shape and position requirements are defined by EN ISO 1101; strip runout control recommended ≤ 0.02 mm in the working section.
The 8.7-9.5 mm NRZe adjustable reamer configuration provides repeatable diameter, uniform surface texture and predictable geometry over the full range of adjustment.
