Description
| Technical Data | |
|---|---|
| Nominal Diameter d1 | M24 |
| Thread Pitch P | 3 mm |
| Overall Length l1 | 160 mm |
| Flute Length l2 | 38 mm |
| Shank Diameter d2 | 18 mm |
| Square Drive Size a | 14.5 mm |
| Tap Drill Diameter | 21 mm |
| Chamfer | C (2÷3) P |
| Thread tolerance | 6H |
The flute holds the chips until the tap is reversed out
The straight flute runs parallel to the tap axis. There is no helix to carry chips upward. The chamfer cutting edges are not ground at an angle, so they do not push chips downward. Short chips break into fragments and remain in the flute, next to the cutting edges that produced them. They leave the hole only when the tap is backed out. The M24 x3 tap has a reduced shank to DIN 376: diameter 18 mm, square size 14.5 mm.
The Narex HSSE series, designed for manufacturing engineers and CNC operators working with difficult-to-machine materials, includes the M24 INOX general-purpose machine tap. Tolerance class 6H according to DIN 376 guarantees the dimensional repeatability required in the production of hydraulic and pneumatic components with stringent sealing requirements. The form C design with straight flutes ensures proper chip evacuation in through holes and blind holes. The M24 HSSE machine tap made of steel with 5% cobalt guarantees a hardness of 66 HRC and long cutting edge life in stainless steels.
The Narex M24 machine tap for through holes and blind holes is used in maintenance departments for thread restoration and production machine repairs. European manufacturing quality guarantees reliability. The tap drill diameter for the M24 thread is 21 mm for a coarse thread with a pitch of 3 mm.
| Material | Cutting speed Vc [m/min] | Spindle speed n [rpm] | Feed f [mm/min] |
|---|---|---|---|
| PSteel | 5-20 | 66-265 | 198-795 |
| MStainless steel / INOX | 5-10 | 66-133 | 198-399 |
| KCast iron | 5-15 | 66-199 | 198-597 |
| NAluminum | 10-25 | 133-332 | 399-996 |
NC spotting drill 90°
Ø 21 mm
M24
Tolerance 6H

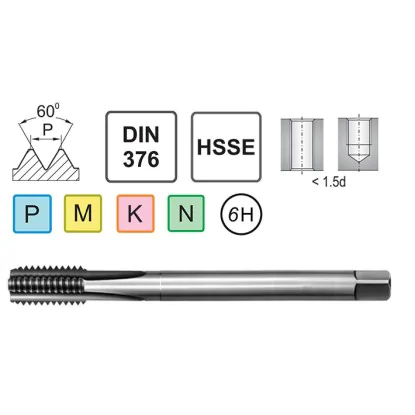

Standard: DIN 376 | Chamfer: C (straight) | Application: general-purpose (through and blind holes)
| Class | Accuracy | Application | Status |
|---|---|---|---|
| 4H / 4g | High | Precision connections, hydraulics | — |
| 6H / 6g | Standard | Machine building, general-purpose | SELECTED |
| 7H / 8g | Low | Large clearance, easy assembly | — |
6H = internal thread (nut, hole) | 6g = external thread (screw)
The M24 HSSE tap is suitable for austenitic stainless steels 304 and 316, structural steels up to 800 MPa, ductile cast iron, and aluminum and brass alloys. It is not recommended for hardened steels above 45 HRC.
The nominal tap drill diameter for the M24 thread is 21 mm. The hole tolerance zone should be within the range of 20.9–21.1 mm. A hole at the lower tolerance limit produces a fuller thread profile, while a hole at the upper limit reduces tapping torque.
The M24 tap works with ER32 holders and tapping chucks with axial compensation. Synchronized heads with automatic tool change capability are recommended for CNC machines.
