Description
Material HSS
Thread size M24
Number of pieces3 pcs
Tolerance 6H ISO2
Technical data for the M24 hand tap
| Technical data | |
|---|---|
| Thread Diameter d1 | M24 |
| Thread Pitch P | 3 mm |
| Overall Length l1 | 110 mm |
| Flute Length l2 | 34 mm |
| Shank Diameter d2 | 18 mm |
| Square Drive Width Across Flats a | 14.5 mm |
| Tap Drill Hole | 21.0 mm |
Roughing, intermediate, and finishing taps – how much material each removes
Division of work in the 1–2–3 set
The M24 x3 thread is formed in the wall of a hole with a diameter of 21 mm. The thread groove extends 1.5 mm into the wall. A single tap would have to cut the entire groove at once – by hand, this creates high resistance and a risk of breakage. The set divides this work into three layers.
The drawing shows the entire set in operation. All three taps have the same shank and the same length. They differ in chamfer length: No. 1 has a taper spanning 7–10 threads, while No. 3 spans only 1–2 threads. The detail views at the hole wall show how the thread groove deepens after each tap.
| Tap | Chamfer | Material removed | How it works in the hole |
|---|---|---|---|
| No. 1 – roughing tap | long, 7–10 threads | approx. 60% | enters smoothly and establishes thread alignment |
| No. 2 – intermediate | medium, 3–5 threads | approx. 30% | screws into the previously cut threads and starts cutting only deeper in the hole |
| No. 3 – finishing tap | short, 1–2 threads | approx. 10% + sizing | turns easily and produces the full 6H profile |
How to identify the tap numbers in the set

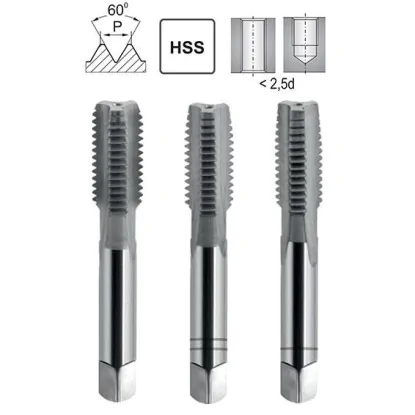

The chamfer is the tapered end of the tap. No. 1 has the longest chamfer and No. 3 the shortest – the difference is immediately visible when they are placed side by side. No. 1 and No. 2 have shallower thread profiles; only No. 3 has the full profile. The number can also be identified on the shank: No. 1 has one ring, No. 2 has two, and No. 3 has none. Keep the set together and always start with the roughing tap.
How to tap an M24 hole – sequence 1, 2, 3
Hand tapping step by step
Thread M24 x3 in five steps
ØDrilling
Drill bit 21 mm
1Roughing tap
Removes approx. 60%
2Intermediate
Removes approx. 30%
3Finishing tap
Removes approx. 10%
✓Finished thread
Tolerance 6H
Turning sequence: half a turn clockwise, a quarter turn counterclockwise | Between taps: remove chips from the hole
Start with the hole. The drill diameter is easy to calculate: thread diameter 24 mm minus pitch 3 mm gives 21 mm. An undersized hole is a common cause of a tap twisting off in the workpiece.
Through hole or blind hole – how deep to drill
The set taps both types of holes. In a through hole, the thread extends through the full material thickness. In a blind hole, cut the thread to 36 mm, or 1.5 times the thread diameter (1.5 x 24 mm, shown as 1.5D in the drawing). Drill the hole deeper than the thread. The clearance below the thread accommodates chips and the finishing tap chamfer.
No. 1 – the roughing tap establishes thread alignment
Fit the roughing tap in the tap wrench and position it perpendicular to the surface. Check the angle from two sides, for example with a square. Turn half a turn clockwise, then a quarter turn counterclockwise. Reversing breaks the chip into short pieces – a slight crunch is normal. The first threads determine whether the thread will be straight.
No. 2 and No. 3 – deepening and full profile
Unscrew the roughing tap and remove chips from the hole. Screw the intermediate tap by hand into the previously cut threads – it should engage them naturally. It turns easily at first and starts cutting only deeper in the hole. The finishing tap enters with almost no resistance and cuts the final portion of the profile only at the end. When it screws smoothly all the way in, the thread is ready – check it with an M24 screw.
M24 HSS DIN 352 hand tap – 3-piece set for industrial threads
The M24 hand tap set is a professional set of three tools for cutting internal threads with a diameter of 24 mm and a pitch of 3 mm. M24 HSS hand taps are widely used in the machinery, construction, and energy industries, where the M24 thread provides high load capacity for connections in steel structures and machine housings.
Key benefits of the M24 tap set
- 3-piece set (roughing, intermediate, and finishing taps) – essential at large diameters, where cutting forces are considerable
- Popular industrial size M24 – for machine housings, steel structures, and fastening components
- HSS high-speed steel – enables machining of structural steels and cast iron with strengths up to 800 MPa
- Tolerance 6H according to DIN 352 – precise fit with screws and nuts of tolerance class 6g
- 14 mm square shank – compatible with No. 4 industrial tap wrenches
The 3-piece M24 hand tap set is suitable for manufacturing plants, construction machinery service centers, and steel fabrication companies. Use a drill bit with a diameter of 21 mm to drill the hole for an M24 thread. Use a sturdy tap wrench with long handles and apply plenty of lubricant.
Tolerance 6H — metric thread tolerance classes
| Class | Accuracy | Application | Status |
|---|---|---|---|
| 4H / 4g | High | Precision connections, hydraulics | — |
| 6H / 6g | Standard | Machine building, general-purpose | SELECTED |
| 7H / 8g | Low | Large clearance, easy assembly | — |
6H = internal thread (nut, hole) | 6g = external thread (screw)
Frequently asked questions
For an M24 thread with a pitch of 3 mm, use a 21 mm drill bit. Calculation: diameter minus pitch (24 - 3 = 21 mm).
M24 threads are used in industrial machine housings, steel structures, and load-bearing components. This is a popular size for heavy loads.
An M24 tap with a 14 mm shank requires a No. 4 industrial tap wrench. Long handles make it easier to overcome high cutting forces.
