Description
| Technical Data | |
|---|---|
| Nominal Diameter d1 | M48 |
| Thread Pitch P | 5 mm |
| Overall Length l1 | 250 mm |
| Flute Length l2 | 70 mm |
| Shank Diameter d2 | 36 mm |
| Square Drive Size a | 29 mm |
| Tap Drill Diameter | 43 mm |
| Chamfer | C (2÷3) P |
| Thread tolerance | 6H |
The flute holds the chips until the tap is reversed out

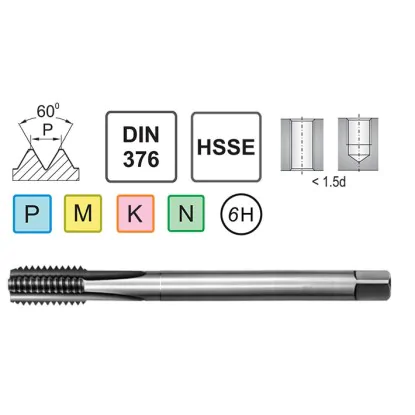

The straight flute runs parallel to the tap axis. There is no helix to carry chips upward. The chamfer cutting edges are not ground at an angle, so they do not push chips downward. Short chips break into fragments and remain in the flute, next to the cutting edges that produced them. They leave the hole only when the tap is backed out. The M48 x5 tap has a reduced shank to DIN 376: diameter 36 mm, square size 29 mm.
The HSSE series with long shanks according to DIN 376, designed for manufacturing engineers and CNC operators working with large diameters, includes the M48 INOX machine tap with increased rigidity. The 6H tolerance in accordance with DIN 376 guarantees the dimensional repeatability required in the manufacture of mechanical components with demanding specifications. The long shank eliminates vibration at the high cutting torques typical of the largest diameters. Its HSSE steel construction with 5% cobalt guarantees a hardness of 66 HRC and long cutting edge life in stainless and difficult-to-machine steels.
The M48 HSSE machine tap is designed for machining hydraulic power components and industrial valves and fittings. The M48 machine tap for through and blind holes is not recommended for steels hardened above 45 HRC. The tap drill diameter is 43 mm for a coarse thread with a pitch of 5 mm.
| Material | Cutting speed Vc [m/min] | Spindle speed n [rpm] | Feed f [mm/min] |
|---|---|---|---|
| PSteel | 5-20 | 33-133 | 165-665 |
| MStainless steel / INOX | 5-10 | 33-66 | 165-330 |
| KCast iron | 5-15 | 33-99 | 165-495 |
| NAluminum | 10-25 | 66-166 | 330-830 |
NC spotting drill 90°
Ø 43 mm
M48
Tolerance 6H
Standard: DIN 376 | Chamfer: C (straight) | Application: general-purpose (through and blind holes)
| Class | Accuracy | Application | Status |
|---|---|---|---|
| 4H / 4g | High | Precision connections, hydraulics | — |
| 6H / 6g | Standard | Machine building, general-purpose | SELECTED |
| 7H / 8g | Low | Large clearance, easy assembly | — |
6H = internal thread (nut, hole) | 6g = external thread (screw)
With proper cooling and lubrication, the M48 HSSE tap produces 400-600 threads in structural steel or 250-350 threads in stainless steel. Dry machining reduces tool life by 40-50%.
Yes, the M48 HSSE tap with 5% cobalt is designed for austenitic stainless steels 304 and 316. The cobalt addition increases heat resistance up to 650°C in the cutting zone.
An HSSE tap contains 5% cobalt, which increases hardness from 64 to 66 HRC and heat resistance to 650°C. HSSE is suitable for stainless steels, while HSS is suitable only for structural steels up to 800 MPa.
