Description

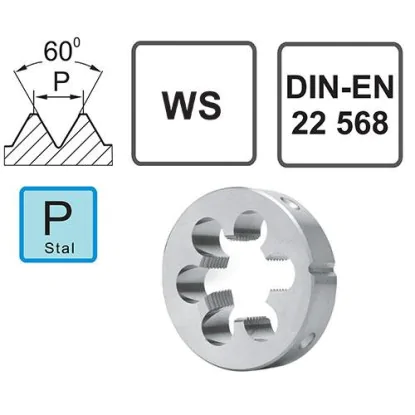

Technical data of M3 button dies
- cut thread d1 - M3
- thread pitch P - 0,5 mm,
- external diameter d2 - 20 mm,
- thickness h1 - 5 mm,
- number of chip holes - 3,
- required diameter of the shaft - 2,92 mm.
Threading dies M3 for manual and machine threading
M3 x0,5 WS threading annealer, round NHMa, for external threads of nominal diameter M3. It is designed for metric ordinary threads. The tolerance class of the threads made is 6g. Metric dies offered by our store are suitable for manual and machine threading. They are dedicated to both individual customers and large manufacturing plants. They are made according to the dimensional standard DIN 22 568 from a special tool steel marked WS. This is a steel with high cutting properties, which are reflected in the very good quality of the threads made. In addition, the dies are very resistant to heavy cutting conditions. This makes it possible to machine hard and hard-to-machine materials of class P1.2 - P1.3. These are metals, non-alloy steels, non-ferrous metals, metal alloys and hardened plastics. The metric chasers from our store are resistant to mechanical damage, which reduces machining costs.
Product accessories
Hand tap M3 DIN 352/3 6H HSS Bucovice
Reference: 0000004910 In stock > 10 items
€5.53
€6.80 brutto
