Description
| Technical Data | |
|---|---|
| Nominal Diameter d1 | M33 |
| Thread Pitch P | 3.5 mm |
| Overall Length l1 | 180 mm |
| Flute Length l2 | 50 mm |
| Shank Diameter d2 | 25 mm |
| Square Drive Size a | 20 mm |
| Tap Drill Diameter | 29.5 mm |
| Chamfer | C (2÷3) P |
| Thread tolerance | 6H |
The flute holds the chips until the tap is reversed out

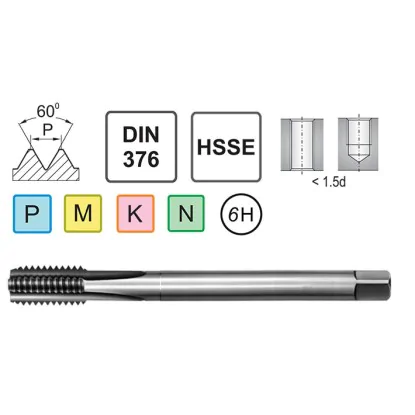

The straight flute runs parallel to the tap axis. There is no helix to carry chips upward. The chamfer cutting edges are not ground at an angle, so they do not push chips downward. Short chips break into fragments and remain in the flute, next to the cutting edges that produced them. They leave the hole only when the tap is backed out. The M33 x3.5 tap has a reduced shank to DIN 376: diameter 25 mm, square size 20 mm.
In this product line, Fra offers the M33 INOX machine tap with optimized cutting geometry for metric threads with a diameter of 33 mm. The tool meets DIN 376 requirements and provides thread tolerance class 6H required in series production of mechanical and precision components. HSSE steel construction with 5% cobalt ensures a hardness of 66 HRC and resistance to temperatures up to 650°C in the cutting zone. Form C with straight flutes provides versatile use in through and blind holes in stainless steels.
The Fra M33 general-purpose machine tap is used in steel structures, hydraulic power systems and the production of industrial automation components. The M33 machine tap for through and blind holes is compatible with automatic tool changing systems. The tap drill diameter for the M33 thread is 29.5 mm for a coarse thread with a pitch of 3.5 mm.
| Material | Cutting speed Vc [m/min] | Spindle speed n [rpm] | Feed f [mm/min] |
|---|---|---|---|
| PSteel | 5-20 | 48-193 | 168-676 |
| MStainless steel / INOX | 5-10 | 48-96 | 168-336 |
| KCast iron | 5-15 | 48-145 | 168-508 |
| NAluminum | 10-25 | 96-241 | 336-844 |
NC spotting drill 90°
Ø 29.5 mm
M33
Tolerance 6H
Standard: DIN 376 | Chamfer: C (straight) | Application: general-purpose (through and blind holes)
| Class | Accuracy | Application | Status |
|---|---|---|---|
| 4H / 4g | High | Precision connections, hydraulics | — |
| 6H / 6g | Standard | Machine building, general-purpose | SELECTED |
| 7H / 8g | Low | Large clearance, easy assembly | — |
6H = internal thread (nut, hole) | 6g = external thread (screw)
With proper cooling and lubrication, the M33 HSSE tap produces 400-600 threads in structural steel or 250-350 threads in stainless steel. Dry machining reduces tool life by 40-50%.
Yes, the M33 HSSE tap with 5% cobalt is designed for austenitic stainless steels 304 and 316. The cobalt addition increases heat resistance up to 650°C in the cutting zone.
An HSSE tap contains 5% cobalt, which increases hardness from 64 to 66 HRC and heat resistance to 650°C. HSSE is suitable for stainless steels, while HSS is suitable only for structural steels up to 800 MPa.
