Description
| Technical Data | |
|---|---|
| Nominal Diameter d1 | M30 |
| Thread Pitch P | 3.5 mm |
| Helix Angle | 35° |
| Overall Length l1 | 180 mm |
| Flute Length l2 | 45 mm |
| Length l3 | 62 mm |
| Shank Diameter d2 | 22 mm |
| Square Drive Size a | 18 mm |
| Tap Drill Diameter | 26.5 mm |
| Chamfer | C (2÷3) P |
| Thread tolerance | 6H |
The 35° flute works like a screw conveyor
The flutes of this tap follow a right-hand helix at an angle of 35° to the axis. The tap rotates clockwise and advances into the hole. Chips cut by the chamfer enter the flute, and the helix carries them upward like the screw in a meat grinder. The bottom of the hole stays clean, and the cutting edges do not encounter packed chips. The M30 x3.5 tap has a reduced shank according to DIN 376: diameter 22 mm, square size 18 mm.

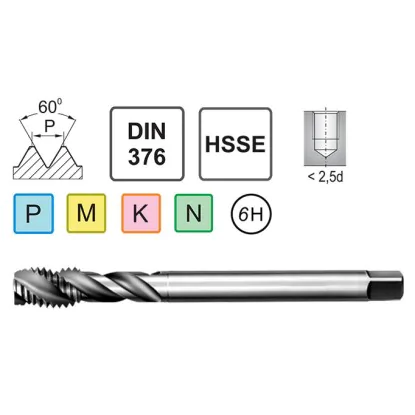

The Narex M30 spiral flute machine tap with a long shank is designed for precision tapping of large blind holes in heavy industry. HSSE steel construction with 5% added cobalt guarantees a hardness of 65-67 HRC and long cutting edge life even when machining alloy steels. The 35° spiral flute design directs chips backward, which is essential for blind hole tapping. The long shank in accordance with DIN 376 increases clamping rigidity in machine tool holders. The 6H tolerance guarantees the dimensional repeatability required in industrial production.
The M30 spiral flute tap is used in heavy industry and in the production of machine housings requiring large internal threads. The standard pitch of the M30 thread is 3.5 mm, with a tap drill diameter of 26.5 mm. The tool works with standard coolant emulsions and tapping oils.
| Material | Cutting speed Vc [m/min] | Spindle speed n [rpm] | Feed f [mm/min] |
|---|---|---|---|
| PSteel | 5-20 | 53-212 | 186-742 |
| MStainless steel | 5-10 | 53-106 | 186-371 |
| KCast iron | 5-15 | 53-159 | 186-556 |
| NAluminum | 10-25 | 106-265 | 371-928 |
NC spotting drill 90°
Ø 26.5 mm
M30
Tolerance 6H
Standard: DIN 376 | Chamfer: C (spiral flute) | Application: blind holes
| Class | Accuracy | Application | Status |
|---|---|---|---|
| 4H / 4g | High | Precision connections, hydraulics | — |
| 6H / 6g | Standard | Machine building, general-purpose | SELECTED |
| 7H / 8g | Low | Large clearance, easy assembly | — |
6H = internal thread (nut, hole) | 6g = external thread (screw)
The Narex M30 HSSE spiral flute machine tap performs well in structural steels up to 900 MPa, stainless steels, aluminum, brass, and gray cast iron. The M30 size is used in heavy industry and machine building.
For an M30x3.5 thread of tolerance class 6H, the recommended tap drill diameter is 26.5 mm. The hole tolerance range should be 26.5 to 26.8 mm. Exceeding the upper limit results in an incomplete thread profile.
Yes, cooling with an oil emulsion at a minimum concentration of 8% or with tapping oil is recommended and extends tool life by a factor of 2-3. Intensive cooling under pressure is required when machining stainless steels.
