Description

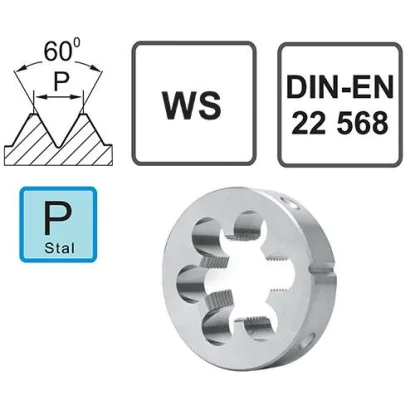

Technical data of M4 button dies
- cut thread d1 - M4
- thread pitch P - 0,7 mm,
- external diameter d2 - 20 mm,
- thickness h1 - 5 mm,
- number of chip holes - 3,
- required diameter of the shaft - 3,90 mm.
Thread cutter M4 for manual and machine threading
High-quality M4 x0,7 WS threading dies, round, NHMa type for cutting metric ordinary threads, with nominal diameter M4. It has a strong cutting edge, the tolerance class of the threads made is 6g. The metric threading dies offered in our store are made in accordance with the standards of DIN 22 568, and special WS tool steel is used in their production. Its properties make it possible to increase the efficiency of machining and at the same time improve the accuracy of the machined surfaces. The dies are very resistant to harsh machining conditions, and are suitable for cutting external threads on workpieces made of unalloyed steels, metals, nonferrous metals, metal alloys, hardened plastics. The blades of the thread cutters are extremely resistant to breaking, cracking, chipping, chipping, dulling and other mechanical damage. This extends tool life and thus reduces overall machining costs.
Product accessories
M4 HSSE INOX 6g DIN 22 568 Fanar tooling
Reference: 0000007076 In stock < 10 items
€12.89
€15.86 brutto
