Description

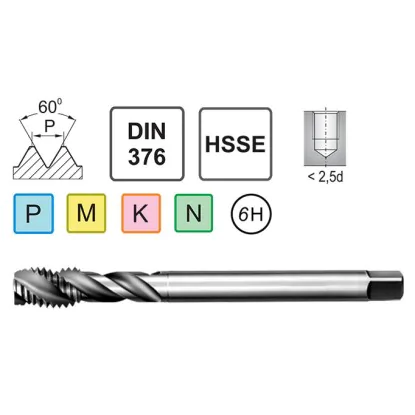

Material HSSE
Thread size M4
ChamferC (2–3) threads
Standard DIN 376
Technical data for the M4 blind-hole tap
| Technical Data | |
|---|---|
| Nominal Diameter d1 | M4 |
| Thread Pitch P | 0.7 mm |
| Helix Angle | 40° |
| Overall Length l1 | 63 mm |
| Flute Length l2 | 8 mm |
| Length l3 | 21 mm |
| Shank Diameter d2 | 2.8 mm |
| Square Drive Size a | 2.1 mm |
| Tap Drill Diameter | 3.3 mm |
| Chamfer | C (2÷3) P |
| Thread tolerance | 6H |
How a spiral flute tap evacuates chips from a blind hole
The 40° flute works like a screw conveyor
The flutes of this tap follow a right-hand helix at an angle of 40° to the axis. The tap rotates clockwise and advances into the hole. Chips cut by the chamfer enter the flute, and the helix carries them upward like the screw in a meat grinder. The bottom of the hole stays clean, and the cutting edges do not encounter packed chips. The M4 x0.7 tap has a reduced shank according to DIN 376: diameter 2.8 mm, square size 2.1 mm.
1
The 40° spiral flute carries chips upward from the chamfer.
2
The stepped chip exits the hole and breaks into short pieces.
3
The tap rotates clockwise to cut a right-hand thread.
4
Chamfer C: 2–3 incomplete threads on the tapered lead.
5
Clearance below the tap tip – min. 2 thread pitches above the bottom.
6
Feed 0.7 mm/rev, equal to the pitch of the M4 x0.7 thread.
M4 spiral flute machine tap – with long shank, DIN 376
In this range, the manufacturer offers the M4 spiral flute machine tap with a long shank for deep tapping in precision engineering. Made from HSSE steel with 5% added cobalt, the tool meets DIN 376 requirements and provides a hardness of 65-67 HRC. The 40° spiral flute guarantees aggressive chip evacuation when tapping blind holes. The long shank increases clamping rigidity and allows tapping in deep holes inaccessible to versions with a short shank.
Advantages and applications of the M4 spiral flute machine tap
- Compatibility with ER16 and ER20 tool holders and tapping chucks with axial compensation for CNC machining centers and automatic lathes
- Tolerance class 6H precision in accordance with DIN 376 guarantees the dimensional repeatability required in series production of precision components
- Designed for precision engineering includes electronic enclosures, optical components, and measuring equipment requiring deep tapping
- Conforms to DIN 376 for long-shank taps provides greater reach and clamping rigidity in deep holes
- Durability of HSSE steel allows machining of structural steels up to 900 MPa, stainless steels, and aluminum and copper alloys
- 40° geometry with form C provides aggressive chip evacuation when tapping blind holes to a depth of 2.5D
The M4 spiral flute tap is used in toolrooms and prototype shops to manufacture precision mechanical components. The standard pitch of the M4 thread is 0.7 mm, with a tap drill diameter of 3.3 mm. The tool works with standard mineral oil-based tapping lubricants and coolant emulsions.
Cutting data for the M4 blind-hole machine tap
| Material | Cutting speed Vc [m/min] | Spindle speed n [rpm] | Feed f [mm/min] |
|---|---|---|---|
| PSteel | 5-20 | 398-1592 | 279-1114 |
| MStainless steel | 5-10 | 398-796 | 279-557 |
| KCast iron | 5-15 | 398-1194 | 279-836 |
| NAluminum | 10-25 | 796-1989 | 557-1392 |
Thread preparation M4 in a blind hole
1 Spot drilling
NC spotting drill 90°
2 Drilling
Ø 3.3 mm
3 Tapping
M4
✓ Done!
Tolerance 6H
Standard: DIN 376 | Chamfer: C (spiral flute) | Application: blind holes
Tolerance 6H — metric thread tolerance classes
| Class | Accuracy | Application | Status |
|---|---|---|---|
| 4H / 4g | High | Precision connections, hydraulics | — |
| 6H / 6g | Standard | Machine building, general-purpose | SELECTED |
| 7H / 8g | Low | Large clearance, easy assembly | — |
6H = internal thread (nut, hole) | 6g = external thread (screw)
Frequently asked questions
The M4 HSSE spiral flute machine tap to DIN 376 is suitable for structural steels up to 900 MPa, stainless steels, aluminum, and brass. The long shank enables tapping in deep pockets and holes with restricted access.
For an M4x0.7 thread of tolerance class 6H, the recommended tap drill diameter is 3.3 mm. The hole tolerance range should be 3.3 to 3.4 mm. Exceeding the upper limit results in an incomplete thread profile.
Yes, cooling with tapping oil or minimum quantity lubrication (MQL) is recommended due to the small diameter and risk of breakage. The tool requires careful handling and low cutting speeds.
Product accessories
M4 HSSE INOX 6g DIN 22 568 Fanar tooling
Reference: 0000007076 In stock < 10 items
€12.89
€15.86 brutto
