Description
| Technical Data | |
|---|---|
| Nominal Diameter d1 | M7 |
| Thread Pitch P | 1 mm |
| Overall Length l1 | 80 mm |
| Flute Length l2 | 18 mm |
| Shank Diameter d2 | 6 mm |
| Square Drive Size a | 4.9 mm |
| Tap Drill Diameter | 6 mm |
| Chamfer | B (3.5÷5.5) P |
| Thread tolerance | 6H |
Chips exit at the bottom instead of returning through the thread

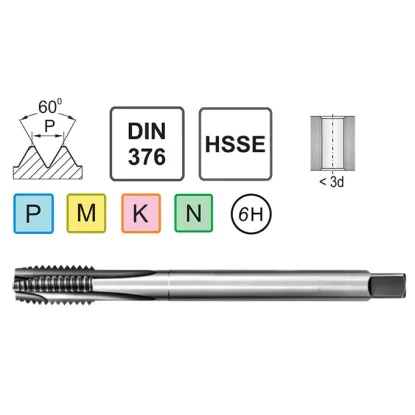

The type B through-hole chamfer has a chip breaker at the tip of the tap – an angled notch in the cutting edges. The chip breaker directs chips down the hole, ahead of the tap tip. The chips curl into a spring shape, break into short pieces and exit the hole on the other side of the workpiece. The threads already cut remain clean because the chips do not pass through them on their way up. The M7 x1 tap has a reduced shank to DIN 376: diameter 6 mm, square size 4.9 mm.
The Narex M7 machine tap for through holes is a professional tool for cutting M7 internal threads in holes requiring increased clamping rigidity. The long shank according to DIN 376 minimizes tool runout and improves thread quality in the nonstandard M7 size. HSSE high-speed steel construction with 5% cobalt provides a hardness of 65-67 HRC and high heat resistance up to 650°C in the cutting zone.
The Narex M7 machine tap with a long shank is suitable for toolrooms and prototype shops producing components with specific strength requirements. Form B with straight flutes directs chips forward. Cooling with an emulsion containing EP additives at a concentration of 8-10% is recommended.
| Material | Cutting speed Vc [m/min] | Spindle speed n [rpm] | Feed f [mm/min] |
|---|---|---|---|
| PSteel | 5-20 | 227-909 | 227-909 |
| MStainless steel | 5-10 | 227-455 | 227-455 |
| KCast iron | 5-15 | 227-682 | 227-682 |
| NAluminum | 10-25 | 455-1137 | 455-1137 |
NC spotting drill 90°
Ø 6 mm
M7
Tolerance 6H
Standard: DIN 376 | Chamfer: B (straight) | Application: through holes
| Class | Accuracy | Application | Status |
|---|---|---|---|
| 4H / 4g | High | Precision connections, hydraulics | — |
| 6H / 6g | Standard | Machine building, general-purpose | SELECTED |
| 7H / 8g | Low | Large clearance, easy assembly | — |
6H = internal thread (nut, hole) | 6g = external thread (screw)
DIN 371 specifies a short shank, while DIN 376 specifies a long shank. The long shank provides greater clamping rigidity and improved tool guidance, which is recommended for deep tapping on CNC centers.
Narex is a reputable manufacturer with a long tradition, offering tools with consistent quality and repeatable geometric specifications. Narex taps offer good value for money.
Yes, M6, M7 and M8 coarse threads all have a pitch of 1 mm according to DIN 13. They differ only in nominal diameter and tap drill diameter.
