Description
| Technical Data | |
|---|---|
| Nominal Diameter d1 | M33 |
| Thread Pitch P | 3.5 mm |
| Overall Length l1 | 180 mm |
| Flute Length l2 | 50 mm |
| Shank Diameter d2 | 25 mm |
| Square Drive Size a | 20 mm |
| Tap Drill Diameter | 29.5 mm |
| Chamfer | B (3.5÷5.5) P |
| Thread tolerance | 6H |
Chips exit at the bottom instead of returning through the thread

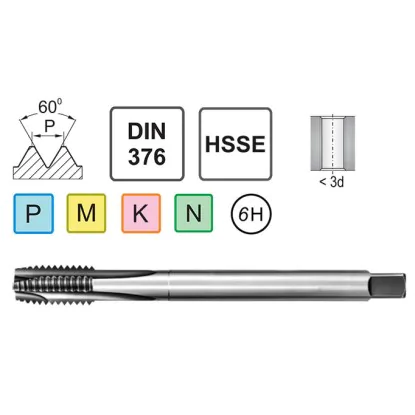

The type B through-hole chamfer has a chip breaker at the tip of the tap – an angled notch in the cutting edges. The chip breaker directs chips down the hole, ahead of the tap tip. The chips curl into a spring shape, break into short pieces and exit the hole on the other side of the workpiece. The threads already cut remain clean because the chips do not pass through them on their way up. The M33 x3.5 tap has a reduced shank to DIN 376: diameter 25 mm, square size 20 mm.
Fra offers the M33 machine tap for through holes, made from HSSE high-speed steel with 5% added cobalt for machine building and special-purpose structures. The long shank in accordance with DIN 376 provides increased clamping rigidity and better tool guidance when tapping the nonstandard M33 diameter. The 6H tolerance guarantees dimensional repeatability. The M33 diameter is a special size used in applications where standard M32 or M36 sizes do not meet the requirements.
The Fra M33 machine tap is used in specialized machinery designs and heavy industry where a nonstandard diameter is required. Form B with straight flutes directs chips forward when tapping through holes. Cooling with an oil emulsion at a concentration of 8-10% is recommended.
| Material | Cutting speed Vc [m/min] | Spindle speed n [rpm] | Feed f [mm/min] |
|---|---|---|---|
| PSteel | 5-20 | 48-193 | 168-676 |
| MStainless steel | 5-10 | 48-96 | 168-336 |
| KCast iron | 5-15 | 48-145 | 168-508 |
| NAluminum | 10-25 | 96-241 | 336-844 |
NC spotting drill 90°
Ø 29.5 mm
M33
Tolerance 6H
Standard: DIN 376 | Chamfer: B (straight) | Application: through holes
| Class | Accuracy | Application | Status |
|---|---|---|---|
| 4H / 4g | High | Precision connections, hydraulics | — |
| 6H / 6g | Standard | Machine building, general-purpose | SELECTED |
| 7H / 8g | Low | Large clearance, easy assembly | — |
6H = internal thread (nut, hole) | 6g = external thread (screw)
The M33 thread is used in specialized industrial applications where standard M32 or M36 sizes do not meet design requirements for diameter or load capacity.
The recommended tap drill diameter for the M33 coarse thread is 29.5 mm. Accurate hole machining ensures a full thread profile.
M33 is a nonstandard size, and fasteners may require a special order. Checking availability with industrial suppliers in advance is recommended.
