Net price: €46.05
Description
| Technical Data | |
|---|---|
| Nominal Diameter d1 | M28x1.5 |
| Thread Pitch P | 1.5 mm |
| Overall Length l1 | 140 mm |
| Flute Length l2 | 27 mm |
| Shank Diameter d2 | 20 mm |
| Square Drive Size a | 16 mm |
| Tap Drill Diameter | 26.5 mm |
| Chamfer | B (3.5÷5.5) P |
| Thread tolerance | 6H |
Chips exit at the bottom instead of returning through the thread

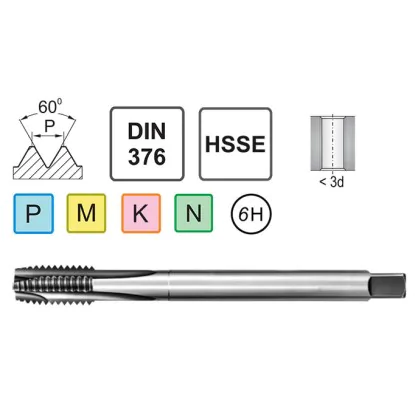

The form B chamfer for through holes has a chip breaker at the tip of the tap – an angled cut in the cutting edges. The chip breaker directs the chip down the hole, ahead of the tap tip. The chip curls into a coil, breaks into short pieces and exits the hole on the other side of the workpiece. The threads already cut remain clean because the chip does not pass through them on its way up. The M28x1.5 tap has a reduced shank according to DIN 374: diameter 20 mm, square size 16 mm.
The M28x1.5 metric fine thread machine tap is a specialized tool for cutting internal threads with a nonstandard diameter of 28 mm in industrial hydraulic components. HSSE high-speed steel construction with 5% added cobalt ensures a hardness of 65-67 HRC and optimum tool life when machining difficult-to-machine materials. The M28x1.5 metric fine thread is used in specialized hydraulic applications where standard M27 or M30 sizes do not meet flow or structural strength requirements.
The M28x1.5 machine tap is used in specialized hydraulic applications, the production of custom valve blocks, and the prototyping of hydraulic power components. The metric fine thread provides good sealing at high pressures. Cooling with an emulsion containing EP additives at a concentration of 8-10% is recommended.
| Material | Cutting speed Vc [m/min] | Spindle speed n [rpm] | Feed f [mm/min] |
|---|---|---|---|
| PSteel | 5-20 | 57-227 | 86-340 |
| MStainless steel | 5-10 | 57-114 | 86-171 |
| KCast iron | 5-15 | 57-171 | 86-256 |
| NAluminum | 10-25 | 114-284 | 171-426 |
NC spotting drill 90°
Ø 26.5 mm
M28x1.5
Tolerance 6H
Standard: DIN 374 | Chamfer: B (straight) | Application: through holes
| Class | Accuracy | Application | Status |
|---|---|---|---|
| 4H / 4g | High | Precision connections, hydraulics | — |
| 6H / 6g | Standard | Machine building, general-purpose | SELECTED |
| 7H / 8g | Low | Large clearance, easy assembly | — |
6H = internal thread (nut, hole) | 6g = external thread (screw)
The M28x1.5 thread is used in specialized hydraulic applications, prototyping and wherever standard M27 or M30 sizes do not meet flow or dimensional requirements.
The recommended tap drill diameter for the M28x1.5 metric fine thread is 26.5 mm. Precise hole machining is essential for leak-tight hydraulic connections.
M28 is a nonstandard size, and fasteners may require a special order. Checking availability with industrial hydraulics suppliers in advance is recommended.
