Description
Material HSSE-PM
Thread size M10
ChamferB (3.5–5.5) threads
Standard DIN 371
Technical data for the M10 machine tap
| Technical Data | |
|---|---|
| Nominal Diameter d1 | M10 |
| Thread Pitch P | 1.5 mm |
| Overall Length l1 | 100 mm |
| Flute Length l2 | 20 mm |
| Length l3 | 39 mm |
| Shank Diameter d2 | 10 mm |
| Square Drive Size a | 8 mm |
| Tap Drill Diameter | 8.5 mm |
| Chamfer | B (3.5÷5.5) P |
| Thread tolerance | 6H |
How the type B through-hole chamfer pushes chips down the hole
Chips exit at the bottom instead of returning through the thread
The form B through-hole chamfer has a chip breaker at the front of the tap – an angled cut in the cutting edges. The chip breaker directs chips down the hole, ahead of the tap tip. The chip curls into a coil, breaks into short pieces, and exits the hole on the other side of the workpiece. Threads already cut remain clean because chips do not pass through them on their way up. The M10 x1.5 tap has a reinforced shank in accordance with DIN 371: diameter 10 mm, square 8 mm.
1
Straight flute – chips do not enter it; the flute carries lubricant to the cutting edges.
2
The chip breaker at the tip of the tap directs chips down the hole.
3
The tap rotates clockwise to cut a right-hand thread.
4
B chamfer: 3.5–5.5 incomplete threads on the entry taper.
5
The chips break into segments: individual pieces at the top of the hole, with progressively more farther down. They fall out below the workpiece.
6
Feed 1.5 mm/rev, equal to the pitch of the M10 x1.5 thread.

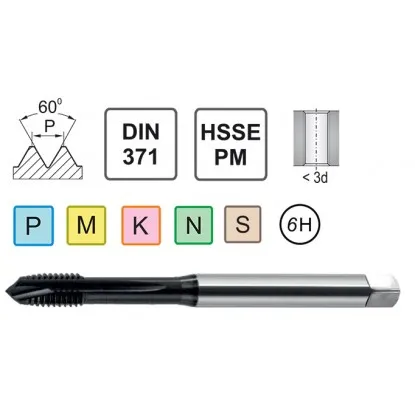

M10 machine tap for through holes – HSSE-PM powder metallurgy steel
The M10 machine tap for through holes, made of HSSE-PM powder metallurgy steel, is a professional tool for the most demanding applications in high-volume production and machining of difficult-to-machine materials. Powder metallurgy technology provides a uniform microstructure and a hardness of 67-69 HRC, significantly exceeding the performance of conventional HSSE taps with a standard structure. M10 is among the most popular metric thread sizes used in the machinery and automotive industries. Powder metallurgy steel construction guarantees 2-3 times the tool life of standard tools while maintaining full dimensional accuracy throughout the service life.
Key features of the M10 HSSE-PM machine tap
- HSSE-PM powder metallurgy steel with a uniform microstructure provides a hardness of 67-69 HRC and 2-3 times the tool life of conventional HSSE taps while maintaining consistent performance
- Popular M10 size widely used in machine building, automotive applications, and series production of mechanical components with standard strength requirements
- Increased wear resistance due to the uniform structure of chromium and vanadium carbides, ensuring consistent cutting performance throughout the tool's service life
- Tolerance class 6H in accordance with DIN 371 ensures thread accuracy and full interchangeability with fasteners used in industrial production
- Optimal cutting edge geometry for difficult-to-machine materials, 304/316 austenitic stainless steels, titanium alloys, and nickel superalloys requiring special cutting parameters
- Short shank in accordance with DIN 371, compatible with ER16 and ER20 holders and tapping chucks with axial compensation used on CNC machining centers
The M10 HSSE-PM machine tap is used in high-volume automotive production and the aerospace and medical industries, where maximum productivity and repeatability with minimal tool change downtime are required. Powder metallurgy steel is particularly effective when tapping austenitic stainless steels and materials prone to adhesion. Cooling with an emulsion containing EP additives at a concentration of 8-10% is recommended.
| Material | Cutting speed Vc [m/min] | Spindle speed n [rpm] | Feed f [mm/min] |
|---|---|---|---|
| PSteel | 5-20 | 159-637 | 238-956 |
| MStainless steel | 5-10 | 159-318 | 238-477 |
| KCast iron | 5-15 | 159-477 | 238-716 |
| NAluminum | 10-25 | 318-796 | 477-1194 |
Thread preparation M10 in a through hole
1 Spot drilling
NC spotting drill 90°
2 Drilling
Ø 8.5 mm
3 Tapping
M10
✓ Done!
Tolerance 6H
Standard: DIN 371 | Chamfer: B (straight) | Application: through holes
Tolerance 6H — metric thread tolerance classes
| Class | Accuracy | Application | Status |
|---|---|---|---|
| 4H / 4g | High | Precision connections, hydraulics | — |
| 6H / 6g | Standard | Machine building, general-purpose | SELECTED |
| 7H / 8g | Low | Large clearance, easy assembly | — |
6H = internal thread (nut, hole) | 6g = external thread (screw)
Frequently asked questions
HSSE-PM powder metallurgy steel has a uniform microstructure, a higher hardness of 67-69 HRC and better wear resistance than conventional HSSE. It provides 2-3 times the tool life.
The M10 HSSE-PM tap is ideal for austenitic stainless steels, titanium alloys, nickel superalloys and other difficult-to-machine materials and materials prone to adhesion.
The M10 HSSE-PM tap achieves 2-3 times the tool life of conventional HSSE taps. It cuts 500-800 threads in stainless steel with proper cooling.
