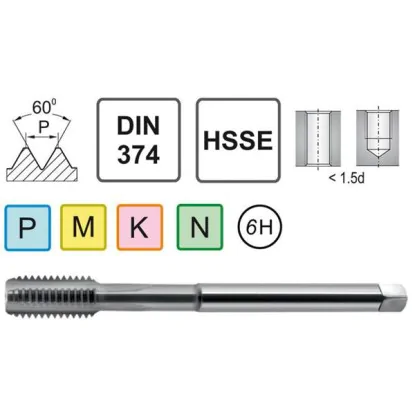

Machine Tap M1.4X0.2 ISO 529 D HSSE Fra
FRA FRA
10670
€4.86 tax inc.
Net price: €3.95
Instant Shipping
W magazynie: +100 szt.
Description
Technical data:
Technical data for the M1.4x0.2 tap
Tool and shank dimensions
| Technical data | |
|---|---|
| nominal diameter d1 | M1.4x0.2 |
| thread pitch P | 0.2 mm |
| overall length l1 | 100 mm |
| flute length l2 | 20 mm |
| shank diameter d2 | 11 mm |
| square drive size | 9 mm |
| tap drill diameter | 1.2 mm |
| Chamfer | D (3.5÷5) P |
Cutting data for the M1.4x0.2 machine tap
| Material | Cutting speed Vc [m/min] | Spindle speed n [rpm] | Feed f [rpm] |
|---|---|---|---|
| PSteel | 5-20 | 3412 | 682 |
| MStainless steel | 5-15 | 2275 | 455 |
| KCast iron | 5-15 | 2275 | 455 |
High-quality general-purpose tap with a reduced shank for right-hand metric fine threads. Features a form D chamfer (3.5-5 P) and straight flutes for short through holes. Tolerance class of the threads produced: ISO2-6H. The taps offered are made of special HSSE high-speed steel with added cobalt (approximately 5%). This element improves the cutting performance of the taps and their ability to withstand demanding operating conditions. This steel allows fine-thread machine taps to machine hard and difficult-to-machine alloy steels, stainless steel, heat-resistant steel, acid-resistant steel, cast steel, cast iron, nonferrous metals, and metal alloys. Even under very demanding conditions (high cutting temperatures up to 670°C), the cutting edges of the taps resist wear and other mechanical damage (breakage, cracking). High cutting performance increases machining productivity and improves machining accuracy.
Product accessories
Hand tap M1.4x0.2 DIN 2181/2 6H HSS
Reference: 0000006734 In stock > 10 items
€10.53
€12.95 brutto
