Drill bit 10 long for metal - 184 mm / 121 mm HSS DIN 340 NWKb

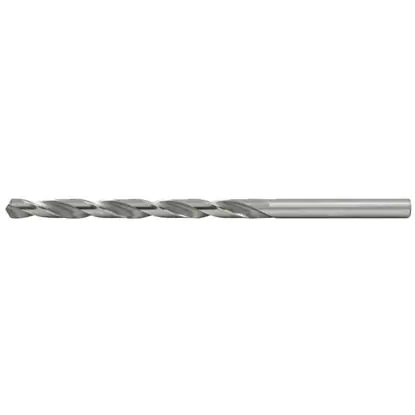

Metal drill bit 10 long 184/121 HSS DIN 340

Name: Metal drill bit 10 long 184/121 HSS DIN 340
Brand: Artykuły Techniczne
SKU: 18255
Price: 5.18 EUR
Availability: InStock

Producer: Artykuły Techniczne

reference: 0231

Diameter (mm): 10140 sizes of this drill

1 1,1 1,2 1,3 1,4 1,5 1,6 1,7 1,8 1,9 2 2,1 2,2 2,3 2,4 2,5 2,6 2,7 2,8 2,9 3 3,1 3,2 3,3 3,4 3,5 3,6 3,7 3,8 3,9 4 4,1 4,2 4,3 4,4 4,5 4,6 4,7 4,8 4,9 5 5,1 5,2 5,3 5,4 5,5 5,6 5,7 5,8 5,9 6 6,1 6,2 6,3 6,4 6,5 6,6 6,7 6,8 6,9 7 7,1 7,2 7,3 7,4 7,5 7,6 7,7 7,8 7,9 8 8,1 8,2 8,3 8,4 8,5 8,6 8,7 8,8 8,9 9 9,1 9,2 9,3 9,4 9,5 9,6 9,7 9,8 9,9 10 10,1 10,2 10,4 10,5 10,6 10,7 10,8 10,9 11 11,1 11,2 11,3 11,4 11,5 11,6 11,7 11,8 11,9 12 12,1 12,2 12,3 12,4 12,5 12,7 12,8 13 13,3 13,5 13,7 14 14,25 14,5 15 15,5 15,75 16 16,5 17 17,25 17,5 18 18,25 18,5 18,75 19 19,25 19,5 20

€5.18 tax inc.

Net price: €4.21

Instant Shipping

W magazynie: 10-100 szt.

Instant Shipping

Call and order: (44) 755-04-05

Description

Technical data of long drill fi 10

Technical data
Drill working diameter d	fi 10 mm
Overall length l1	184 mm
Length of working part l2	121 mm

Cutting parameters of long drill bit fi 10 mm HSS NWKb

ISO symbol	Material	Cutting speed Vc [m/min]	Feed per revolution f [mm]	Revolutions n [obr/min]	Total feed rate [mm/min]
P	Steel	12-21	0,08	382	31
K	Cast iron	10-15	0,08	318	25
	Copper and alloys	12-25	0,1	382	38

May be useful

Cutting parameters calculator

Long drill bit for metal fi 10

High-quality long drill for metal fi 10 with cylindrical chuck made according to the NWKb, DIN 340 dimensional standard. It has 2 central blades, strong cutting edges, a tip angle of 118 degrees and special chip grooves. This design of the drill makes it insensitive to impact and lateral forces and also allows it to effectively cut very hard materials. Long drills for metal fi 10,0 cylindrical offered in our store are uniform - entirely made of modern HSS high-speed steel. Its properties affect the ability to increase the precision of cutting, even at high speeds. The drills are also resistant to high temperatures, which makes it possible to increase drilling speed and significantly reduce working time. Another important advantage is their high resistance to harsh working conditions, as well as the resistance of the blades to any mechanical damage (breaking, blunting, breaking, cracking). The drills are suitable for machining P1.2 - P1.3 materials using various types of machine tools.

Product accessories

Metal drill bit 10 mm extra long - 185 mm / 265 mm HSS

Metal drill bit 10 extra long 185/265 HSS DIN 1869

Reference: 0000003976 In stock < 10 items

€8.42

€10.36 brutto

Cobalt drill bit 10 mm for metal - HSSE DIN 338 NWKa

HSSE 10 cobalt metal drill bit DIN 338

Reference: 11591 In stock > 10 items

€4.34

€5.34 brutto
