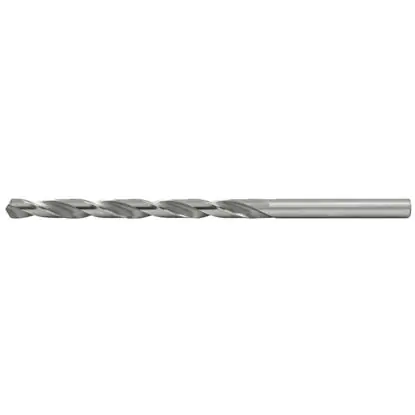

Drill bit 5 long for metal - 132 mm / 87 mm HSS DIN 340 NWKb

Drill 5 long 132/87 HSS DIN 340

Name: Drill 5 long 132/87 HSS DIN 340
Brand: Artykuły Techniczne
SKU: 26028
Price: 1.46 EUR
Availability: OutOfStock

Producer: Artykuły Techniczne

reference: 195159

Diameter (mm): 5140 sizes of this drill

1 1,1 1,2 1,3 1,4 1,5 1,6 1,7 1,8 1,9 2 2,1 2,2 2,3 2,4 2,5 2,6 2,7 2,8 2,9 3 3,1 3,2 3,3 3,4 3,5 3,6 3,7 3,8 3,9 4 4,1 4,2 4,3 4,4 4,5 4,6 4,7 4,8 4,9 5 5,1 5,2 5,3 5,4 5,5 5,6 5,7 5,8 5,9 6 6,1 6,2 6,3 6,4 6,5 6,6 6,7 6,8 6,9 7 7,1 7,2 7,3 7,4 7,5 7,6 7,7 7,8 7,9 8 8,1 8,2 8,3 8,4 8,5 8,6 8,7 8,8 8,9 9 9,1 9,2 9,3 9,4 9,5 9,6 9,7 9,8 9,9 10 10,1 10,2 10,4 10,5 10,6 10,7 10,8 10,9 11 11,1 11,2 11,3 11,4 11,5 11,6 11,7 11,8 11,9 12 12,1 12,2 12,3 12,4 12,5 12,7 12,8 13 13,3 13,5 13,7 14 14,25 14,5 15 15,5 15,75 16 16,5 17 17,25 17,5 18 18,25 18,5 18,75 19 19,25 19,5 20

€1.46 tax inc.

Net price: €1.18

Brak w magazynie

Call and order: (44) 755-04-05

Description

Technical data of long drill fi 5

Technical data
Working diameter of drill d	fi 5 mm
Overall length l1	132 mm
Length of working part l2	87 mm

Cutting parameters of long drill fi 5 mm HSS NWKb

ISO symbol	Material	Cutting speed Vc [m/min]	Feed per revolution f [mm]	Revolutions n [obr/min]	Total feed rate [mm/min]
P	Steel	12-21	0,06	764	46
K	Cast iron	10-15	0,06	637	38
	Copper and alloys	12-25	0,08	764	61

May be useful

Cutting parameters calculator

Long metal drill fi 5

Professional long drill bit for metal fi 5 with smooth cylindrical chuck intended for drilling through-holes and blind holes in materials with a high degree of hardness (unalloyed steels, metals, metal alloys, non-ferrous metals, plastics). The long metal drill fi 5,0 offered by us has strong ground cutting edges, special spiral grooves for chip removal up the drilled hole and two central blades. Cylindrical drills are made in accordance with the standards of the NWKb dimensional standard, DIN 340. They are produced from special HSS high-speed steel, which is characterized by very high cutting properties. First of all, drills made of this material are characterized by the possibility of high-performance and very precise drilling. They are very resistant to harsh working conditions, especially to high temperatures (up to 600 degrees C) created when drilling at high speed. The drills are suitable for machining metals, unalloyed steels, nonferrous metals, metal alloys and plastics. Recommended for various types of conventional and numerical computer-controlled machine tools - CNC.

Product accessories

Metal drill bit 5 mm extra long - 315 mm / 210 mm HSS

Metal drill bit 5 extra long 315/210 HSS DIN 1869

Reference: 0000004135 In stock < 10 items

€5.79

€7.12 brutto
