Description
Technical data of extra long drill Fi 10
| Technical data | |
|---|---|
| Drill working diameter d | fi 10 mm |
| Overall length l1 | 185 mm |
| Length of working part l2 | 265 mm |
Cutting parameters of extra long drill fi 10 mm HSS NWKp
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per revolution f [mm] | Revolutions n [obr/min] | Total feed rate [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 12-21 | 0,08 | 382 | 31 |
| K | Cast iron | 10-15 | 0,08 | 318 | 25 |
| Copper and alloys | 12-25 | 0,1 | 382 | 38 |
May be useful
Cutting parameters calculator
Extra-long twist drills with cylindrical shank for steel and cast iron for general use. Recommended use is for deep holes, or when greater tool overhang is required. Use in: carbon steel, auto steel, structural steel, gray iron, aluminum bronze, new silver Cu Zn Ni alloy, gray iron, tin-zinc bronze, electronic copper malleable brass. High-performance drilling; precision, heavy-duty.

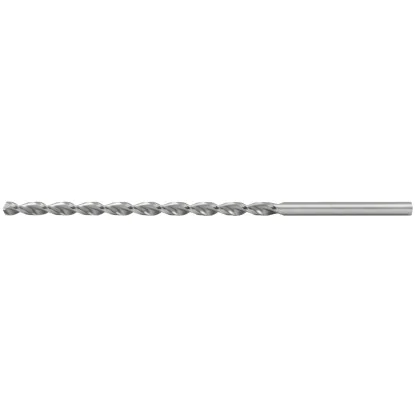

Extra long drill bit for metal 10
Modern NWKp very long drill bit for metal fi 10 cylindrical with a diameter of 10 mm, working length 185 and total length 265 mm. It is a drill distinguished by increased hardness and durability. It was made in accordance with the dimensional standard DIN 1869 from modern HSS (High Speed Steel). Thanks to its properties, it is distinguished by increased resistance to high temperatures generated during high-speed cutting. Offered in our store long drills for metal fi 10 with cylindrical shank NWKp are recommended for drilling very deep holes and also for drilling in concave profiles. The 118-degree tip angle allows to precisely start the drilling process without pre-drilling and scoring. HSS drills in our store are recommended for machining hard and hard-to-machine alloy and non-alloy steels, gray cast iron, nonferrous alloys, copper, aluminum and hard plastics.
Product accessories
Metal drill bit 10 extra long 295/430 HSS DIN 1869
Reference: 0000003478 In stock < 10 items
€17.11
€21.04 brutto
Metal drill bit 10 extra long 235/340 HSS DIN 1869
Reference: 0000003977 In stock < 10 items
€12.37
€15.21 brutto
Metal drill bit 9 extra long 250/175 HSS DIN 1869
Reference: 003796 In stock > 10 items
€7.37
€9.06 brutto
Metal drill bit 10 long 184/121 HSS DIN 340
Reference: 0231 In stock > 10 items
€4.21
€5.18 brutto
Drill 11 extra long 250/365 HSS DIN 1869
Reference: 228697 In stock > 10 items
€14.74
€18.13 brutto
