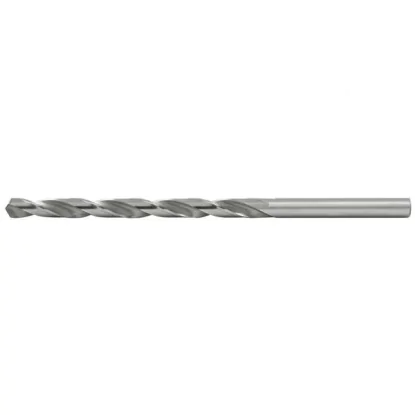

Drill bit 7.7 long for metal - 156 mm / 109 mm HSS DIN 340 NWKb

Metal drill bit 7.7 long 156/109 HSS DIN 340

Name: Metal drill bit 7.7 long 156/109 HSS DIN 340
Brand: Artykuły Techniczne
SKU: 18232
Price: 2.07 EUR
Availability: InStock

Producer: Artykuły Techniczne

reference: 0210

Diameter (mm): 7,7140 sizes of this drill

1 1,1 1,2 1,3 1,4 1,5 1,6 1,7 1,8 1,9 2 2,1 2,2 2,3 2,4 2,5 2,6 2,7 2,8 2,9 3 3,1 3,2 3,3 3,4 3,5 3,6 3,7 3,8 3,9 4 4,1 4,2 4,3 4,4 4,5 4,6 4,7 4,8 4,9 5 5,1 5,2 5,3 5,4 5,5 5,6 5,7 5,8 5,9 6 6,1 6,2 6,3 6,4 6,5 6,6 6,7 6,8 6,9 7 7,1 7,2 7,3 7,4 7,5 7,6 7,7 7,8 7,9 8 8,1 8,2 8,3 8,4 8,5 8,6 8,7 8,8 8,9 9 9,1 9,2 9,3 9,4 9,5 9,6 9,7 9,8 9,9 10 10,1 10,2 10,4 10,5 10,6 10,7 10,8 10,9 11 11,1 11,2 11,3 11,4 11,5 11,6 11,7 11,8 11,9 12 12,1 12,2 12,3 12,4 12,5 12,7 12,8 13 13,3 13,5 13,7 14 14,25 14,5 15 15,5 15,75 16 16,5 17 17,25 17,5 18 18,25 18,5 18,75 19 19,25 19,5 20

€2.07 tax inc.

Net price: €1.68

Instant Shipping

W magazynie: 10-100 szt.

Instant Shipping

Call and order: (44) 755-04-05

Description

Technical data of long drill fi 7.7

Technical data
Working diameter of drill d	fi 7,7 mm
Overall length l1	156 mm
Length of working part l2	109 mm

Cutting parameters of long drill bit fi 7.7 mm HSS NWKb

ISO symbol	Material	Cutting speed Vc [m/min]	Feed per revolution f [mm]	Revolutions n [obr/min]	Total feed rate [mm/min]
P	Steel	12-21	0,06	546	33
K	Cast iron	10-15	0,06	455	27
	Copper and alloys	12-25	0,08	546	44

May be useful

Cutting parameters calculator

Long drill bit for metal fi 7,7

Modern long drill for metal fi 7,7 with cylindrical chuck designed for professional drilling of through-holes and blind holes in very hard and hard-to-machine materials of P1.2 - P1.3 class (metals, plastics, non-ferrous metals, metal alloys, non-alloy steels). The long metal drill fi 7.7 has an apex angle of 118 degrees, 2 central blades and ground spiral cutting edges and special grooves for fast discharge of cut chips up the hole. Our drills are manufactured according to the NWKb, DIN 340 dimensional standard from modern HSS - High Speed Steel. It is a steel characterized by much higher cutting parameters. Thanks to it, it is possible to improve the efficiency and accuracy of machining, as well as to allow drilling holes in very harsh conditions (even at high temperatures up to 600 degrees C). The drill bit is resistant to breaking, cracking, chipping and other mechanical damage. It is designed for milling machines, lathes and conventional drills as well as modern computer-controlled numerical control machine tools.

Product accessories

Drill fi 7.7 mm for metal - HSS DIN 338 NWKa

7.7 mm HSS DIN 338 metal drill bit

Reference: 0099 In stock > 10 items

€0.71

€0.87 brutto
