Description
Technical data of insert for metric internal threads 1,5 mm
| Technical data | |
|---|---|
| Side length L | 16 mm |
| Thread profile | 60 degrees |
| Insert type | Metric thread Internal right/external left |
| Thread pitch range P | 1.5 mm |
| Application examples | M10; M14x1,5; M16x1,5; M18x1,5; M20x1,5; M40x1,5 |
| Thread profile | Full ISO |
| Carbide grade MTA | Suitable for carbon steel, alloy steel, cast iron, stainless steel, cast steel, cast iron and non-ferrous metals |

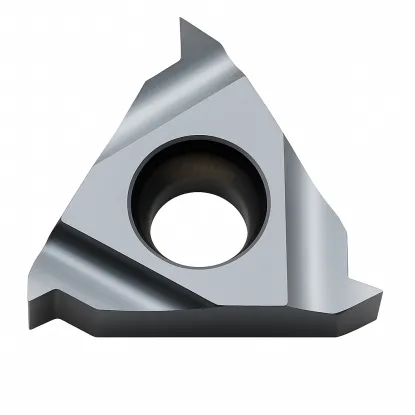

Insert for metric internal threads 16 IR with a pitch of 1.5 mm
Threadinginsert 16 IR 1.5 ISO MTA is a professional tool for internal threading. It is used for making right-hand metric internal threads with a pitch of 1.5 mm on a lathe. Designed for ISO-compliant threads, it has a full 60-degree profile.
It allows for the production of M10 metric threads and fine threads such as M12x1.5, M14x1.5, M16x1.5, M18x1.5, M20x1.5, M42x1.5, M45x1.5, M48x1.5, M50x1.5. With the use of a dedicated toolholder, it functions as a left-hand external insert. The MTA grade ensures cutting stability and excellent surface quality.
Key advantages of the 16 IR 1.5 mm ISO MTA insert
- Full 60-degree thread profile guarantees perfect quality and precision performance
- Extremely wide diameter range from M10 to M50x1.5 with one insert
- Universal use for metric and fine threads with a pitch of 1.5 mm
- Interchangeable use as inner right and outer left insert
- MTA grade provides excellent surface quality and long blade life
The insert is chosen by professionals for its precision in internal threading on a wide range of diameters on the lathe. It will perform well in the production of machine parts, mechanical construction, equipment repair and the manufacture of precision threaded parts. Ideal for mechanical workshops, mass production and technical services requiring high quality. Bet on quality confirmed by specialists in the machining industry. Order Horn MTA insert to improve the quality of internal threading with a pitch of 1.5 mm.
Cutting parameters for internal insert right 16 IR pitch 1.5 mm
| ISO Symbol | Material | Cutting speed Vc [m/min] |
|---|---|---|
| P | Steel | 50-180 |
| M | Stainless steel | 50-90 |
| K | Cast iron | 65-120 |
| N | Aluminum and non-ferrous materials | 90-180 |
Number of recommended passes depending on thread pitch
| Pitch mm | 1,5 |
|---|---|
| Number of passes | 5-11 |
Frequently asked questions
1. What threads is the 16 IR 1.5 ISO MTA insert suitable for?
The insert is designed for metric and fine internal threads with a pitch of 1.5 mm. It has a full profile with a 60-degree apex angle in accordance with ISO 68-1. You can use it to make M10 metric threads and fine threads from M12x1.5 to M50x1.5. That's an extremely wide range of diameters handled with one insert.
2. Can the insert be used for external threads?
Yes, the 16 IR 1.5 ISO MTA insert can be used interchangeably. With a dedicated external holder, it works as a left-hand insert for external threading. It requires the correct tool holder and geometry setting. This makes it a universal solution for different types of thread machining.
3. What is the height of the turned thread outline
H1 - Height of thread outline given in [mm] || P - pitch of thread given in [mm]
H1 [mm]=0.54127*P
For this pitch is: H1=0.54*1.5mm=0.81mm
