Description
Technical data of insert for metric internal threads 1,75 mm
| Technical data | |
|---|---|
| Side length L | 16 mm |
| Thread profile | 60 degrees |
| Insert type | Metric thread Internal right/external left |
| Thread pitch range P | 1,75 mm |
| Example application | M12 |
| Thread profile | Full ISO |
| Carbide grade MTA | Suitable for carbon steel, alloy steel, cast iron, stainless steel, cast steel, cast iron and non-ferrous metals |

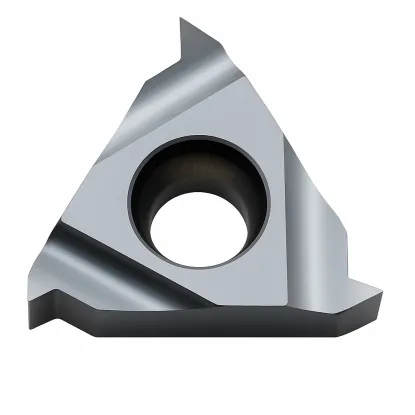

Insert for metric internal threads with pitch 16 IR 1.75 mm
The 16 IR 1.75 ISO MTA threading insert is an advanced tool for internal threading. It is used for making right-hand metric internal threads with a pitch of 1.75 mm on a lathe. Designed for ISO-compliant threads, it has a full 60-degree profile.
Allows the execution of M12 metric threads and fine threads with a pitch of 1.75mm. When used in a suitable chuck, it allows external left-hand threading. The MTA grade provides excellent surface quality and process stability.
Key advantages of the 16 IR 1.75mm ISO MTA insert
- A full 60-degree thread profile guarantees perfect quality and precision workmanship
- Universal application for metric and fine threads with a pitch of 1.75 mm
- Interchangeable use as inner right and outer left insert
- MTA grade provides excellent finish quality and long blade life
The insert is chosen by professionals for its precision in internal threading on the lathe of various metric diameters. It will perform well in the production of machine parts requiring high quality, repairing precision equipment and manufacturing threaded parts. Ideal for mechanical workshops, mass production and technical services that rely on quality. Bet on a solution proven by specialists in the machining industry. Order the Horn MTA insert for perfect internal threading with a pitch of 1.75 mm.
Cutting parameters for a right-hand internal insert with a pitch of 1.75 mm
| ISO Symbol | Material | Cutting speed Vc [m/min] |
|---|---|---|
| P | Steel | 50-180 |
| M | Stainless steel | 50-90 |
| K | Cast iron | 65-120 |
| N | Aluminum and non-ferrous materials | 90-180 |
Number of recommended passes depending on thread pitch
| Pitch mm | 1,75 |
|---|---|
| Number of passes | 9-12 |
Frequently asked questions
1. What threads is the 16 IR 1.75 ISO MTA insert suitable for?
The insert is designed for metric and fine internal threads with a pitch of 1.75 mm. It has a full profile with a 60-degree apex angle according to ISO. You can use it to make M12 metric and fine threads with a thread pitch of 1.75mm. This is a universal diameter range supported by one insert.
2. Can the insert be used for external threads?
Yes, the 16 IR 1.75 ISO MTA insert can be used universally. When used in a suitable holder, it allows for external left-hand threading. This requires the right toolholder and precise tool setting. This makes it a flexible solution for a variety of threading tasks.
3. What is the height of the turned thread outline
H1 - Height of thread outline given in [mm] || P - pitch of thread given in [mm]
H1 [mm]=0.54127*P
For this pitch is: H1=0.54*1.75mm= 0.94mm
