Description
Technical data of insert for metric 1mm internal threads
| Technical data | |
|---|---|
| Side length L | 16 mm |
| Thread profile | 60 degrees |
| Insert type | Metric thread Internal right/external left |
| Thread pitch range P | 1 mm |
| Application | M6, M8x1, M10x1, M12x1, M14x1, M24x1 |
| Thread profile | Full ISO |
| Carbide grade MTA | Suitable for carbon steel, alloy steel, cast iron, stainless steel, cast steel, cast iron and non-ferrous metals |
Insert for metric internal threads with a pitch of 1 mm - universal machining

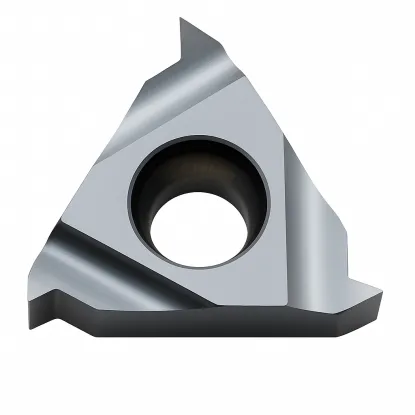

The 16 IR 1 ISO MTA thread insert is a tool for internal threading. It is used for making right-hand metric internal thread s with a pitch of 1 mm on a lathe. Designed for ISO-compliant threads, it has a full 60-degree profile. It allows precise production of M6, M7 metric and M8x1, M10x1, M12x1, M14x1, M15x1, M16x1, M18x1, M20x1, M22x1, M24x1 fine threads.
After using a suitable turning knife, it can be used as an external left. It works well in machining structural steel, aluminum, cast iron and cast steel. MTA Horn grade ensures cutting stability and long blade life. Ideal for machine shops requiring a versatile tool for threads with a pitch of 1 mm.
Key benefits of the 16 IR 1 mm ISO MTA insert
- Full 60-degree thread profile provides excellent quality and precision performance
- Universal application for metric and fine threads with a pitch of 1 mm
- Wide range of diameters from M6 to M24x1 with one insert
- Interchangeable use as inner right and outer left insert
- MTA grade Horn ensures blade durability and internal threading stability
The insert is appreciated by specialists for its versatility in lathe threading of various metric diameters. It will prove itself in the production of machine parts, precision mechanics, repair of equipment and manufacture of threaded parts. Ideal for mechanical workshops, mass production and technical services requiring flexibility. Bet on quality confirmed by professionals in the machining industry. Order the insert Horn, which will improve internal threading with a pitch of 1 mm.
Cutting parameters for internal insert right 16 IR pitch 1 mm
| ISO Symbol | Material | Cutting speed Vc [m/min] |
|---|---|---|
| P | Steel | 50-180 |
| M | Stainless steel | 50-90 |
| K | Cast iron | 65-120 |
| N | Aluminum and non-ferrous materials | 90-180 |
Number of recommended passes depending on thread pitch
| Pitch mm | 1.0 |
|---|---|
| Number of passes | 4-9 |
Frequently asked questions
1. What threads is the 16 IR 1 ISO MTA insert suitable for?
The insert is designed for metric and fine internal threads with a pitch of 1 mm. It has a full profile with an apex angle of 60 degrees in accordance with ISO 68-1. You can use it to make M6, M7 metric and M8x1, M10x1, M12x1, M14x1, M15x1, M16x1, M18x1, M20x1, M22x1, M24x1 metric threads, as well as M8x1, M10x1, M12x1, M14x1, M15x1, M16x1, M18x1, M20x1, M22x1, M24x1 fine threads. It works well for all applications requiring 1mm internal pitch.
2. Can the insert be used as an external left?
Yes, the 16 IR 1 ISO MTA insert can be used interchangeably. It works as an outside-left insert when the appropriate lathe cutter is selected. It requires the right toolholder and the correct tool setting on the lathe. This makes it a versatile solution for various internal and external threading applications.
3. What is the advantage of the full profile for a 1 mm pitch?
The full profile insert is dedicated exclusively for 1 mm pitch. It offers the highest thread quality and best manufacturing precision according to ISO. It provides excellent repeatability of the internal threading process. Ideal for series production requiring perfect quality metric and fine threads.
4. What is the height of the turned thread outline
H1 - Height of thread outline given in [mm] || P - pitch of thread given in [mm]
H1 [mm]=0.54127*P
For this pitch is: H1=0.54*1mm=0.54mm
