Carbide insert 16 IR 0.75 ISO BMA

Fanar Narzędzia Fanar Narzędzia
0000009695
€17.80 tax inc.

Net price: €14.47

Brak w magazynie
Brak w magazynie

Call and order: (44) 755-04-05

Description

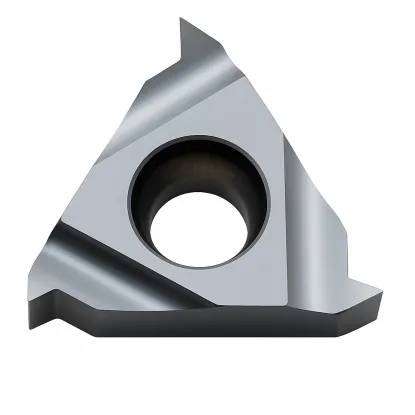

16 IR 0.75 ISO BMA internal metric threading insert

Technical data for the full-profile insert for 0.75 mm pitch

Technical data
Designation16 IR 0.75 ISO BMA
Brand / part numberFanar / 0000009695
Typeinternal threading insert, right-hand
Profilefull, ISO metric, 60° angle
Pitch0.75 mm
Infeed depth0.43 mm
Thread tolerance class6H
Insert size16: edge 16 mm, IC 9.525 mm
Cutting edges3
Tool holdersright-hand internal SIR, size 16, holes from Ø16 mm
GradeBMA: submicron carbide, PVD TiAlN
Fanar 16 IR 0.75 ISO BMA internal metric threading insert, three full-profile corners
Pitch0.75 mm
Profilefull ISO
Infeed depth0.43 mm
Tool holdersSIR 16

16 IR 0.75 ISO BMA internal metric threading insert turns the complete internal thread profile with a pitch of 0.75 mm: flanks, root and crests. In bores from Ø16 mm, it cuts metric fine threads from M18 × 0.75 to M33 × 0.75, which the standard permits outside the table. It works in size 16 right-hand SIR boring bars. It has three corners for successive use.

Full ISO profile – flanks, root and thread hole diameter

The insert finishes the thread crests in the same cycle

This insert

16 IR 0.75 ISO – full profile

16 IR 0.75 ISO insert after the final pass in an M20 × 0.75 thread, the full profile trims the thread crests to diameter D1
Crests trimmed to diameter D1.
Comparison

Partial profile, e.g. 16 IR AG60

Partial-profile insert in an M20 × 0.75 thread, thread crests unmachined
The crests remain as produced by boring the hole.
Axial section of an M20 × 0.75 thread after the final pass. Gold highlights the insert; the red line marks the surfaces machined by the insert.

A full-profile threading insert has short cutting edges on both sides of the tooth. During the final passes, they trim the thread crests to the hole diameter, which is the thread minor diameter D1. The insert therefore turns both the groove and the hole diameter itself, with a crest flat equal to 1/4 of the pitch, or approx. 0.19 mm.

Calculate the bore for an M20 × 0.75 thread using D1 = D − 1.0825 × P: 20 − 1.0825 × 0.75 = 19.188 mm (PN-ISO 724); tolerance class 6H is specified in PN-ISO 965-2. Bore the hole slightly undersize beforehand. An oversized bore will leave the crests unmachined and the profile too shallow. Check the finished thread with a thread plug gauge or a screw.

This insert
Full-profile insert in the thread groove, with machined flanks, root and crests

16 IR 0.75 ISO full profile

The insert turns the flanks, root and crests of a thread with a 0.75 mm pitch. The crest is formed in the same cycle as the flanks, ensuring a repeatable profile in production runs.

Choose for: production runs of threads with a single pitch.
Comparison
Partial-profile insert in the thread groove, with machined flanks and root and unmachined crests

Partial profile, e.g. 16 IR AG60

The insert machines the flanks and root of the groove over a pitch range of 0.5–3.0 mm. It does not touch the crests: they retain the previously turned diameter.

Choose for: short runs and various pitches.

How the 16 IR 0.75 ISO insert cuts threads – passes, feed and cutting data

Feed of 0.75 mm per revolution and 4–7 progressively shallower passes

Internal thread turning with a 16 IR 0.75 ISO insert in an SIR boring bar, feed toward the lathe chuck
Schematic illustration: an insert in a right-hand SIR boring bar inside the workpiece bore. The insert is highlighted in gold.

One spindle revolution – 0.75 mm of feed

The workpiece rotates while the boring bar with the insert moves along the hole axis by 0.75 mm per spindle revolution. In a typical setup, the right-hand insert feeds toward the chuck and turns a right-hand thread. During the final passes, its side cutting edges trim the crests to the hole diameter.

Successive passes of a 16 IR 0.75 ISO insert in an M20 × 0.75 thread groove with flank infeed
Schematic illustration of passes for an M20 × 0.75 thread. The lines show successive cutting edge positions.

Successive passes to an infeed depth of 0.43 mm

The insert reaches a total infeed depth of 0.43 mm in 4–7 passes (value interpolated from the manufacturer's table); start with 6. The first pass removes the most material, and the final pass removes 0.05–0.08 mm. Use flank infeed at 29–30° to the radial direction so that the insert cuts mainly on one flank.

In a blind hole, make a relief groove at the end of the thread at least 0.8 mm wide and no shallower than the infeed depth.

Cutting speed for BMA grade

BMA is a submicron carbide grade with a PVD TiAlN coating for steels, stainless steels and cast iron. The speeds in the table apply to thread turning.

Workpiece materialCutting speed vc [m/min]
P Unalloyed steel, cast steel, free-cutting steel120–180
P Low-alloy steel and cast steel (up to 5% alloying elements)80–130
P High-alloy and tool steel60–80
M Stainless steel and stainless cast steel90–130
K Gray cast iron120–130
K Ductile and malleable cast iron100–130

Spindle speed and feed for M20 × 0.75

Thread pitch of 0.75 mm marked between the centers of adjacent profile crests
Pitch P is measured along the axis between corresponding points on adjacent thread turns.

For each spindle revolution, the insert advances by one pitch: fn = P = 0.75 mm/rev.

Example: M20 × 0.75 in a hole in low-alloy steel, vc = 100 m/min
n = 1000 × vc / (π × d) = 1000 × 100 / (π × 20) ≈ 1590 rpm
vf = n × P = 1590 × 0.75
1192 mm/min
feed rate
d – thread diameter (20 mm), n – spindle speed, vc – cutting speed from the middle of the range in the table, vf – feed rate.

Calculate the helix angle β using tan β = P / (π × d), where P is the pitch and d is the thread diameter. For M20 × 0.75: 0.75 / (π × 20) = 0.012, giving β ≈ 0.68°. Standard threading holder shims tilt the insert by 1–1.5°, so they do not need to be replaced for this thread.

Internal threads with a 0.75 mm pitch – bores from Ø16 mm

The holder's minimum bore diameter determines the smallest thread

The bore for a thread with a 0.75 mm pitch is 0.81 mm smaller than the thread diameter. A boring bar for size 16 inserts fits bores from Ø16 mm, so the smallest thread diameter is approximately 16.8 mm. The standard permits a 0.75 mm pitch outside the table up to a diameter of 33 mm, e.g. M18 × 0.75.

The pitch and tooth profile are independent of the diameter: the infeed depth is always 0.43 mm. The bore in the workpiece determines the thread diameter, rather than the insert.

Decoding the 16 IR 0.75 ISO designation – element by element

Size, operating hand, pitch, profile and grade in the insert designation, holder selection

Drawing of a 16 IR 0.75 ISO insert with dimensions L, IC, X, Y and an ISO-profile corner
Dimensions according to catalogs for inserts of this standard. Enlarged corner detail.

16 IR 0.75 ISO insert dimensions

Size 16 denotes an edge length of 16 mm and an inscribed circle IC of 9.525 mm, or 3/8 inch; it is not the thread diameter. Dimensions X = 0.6 mm and Y = 0.6 mm specify the position of the cutting tip relative to the sides of the insert. The corner reproduces the ISO internal thread profile: a 60° angle, a root width of 1/8 of the pitch and a crest width of 1/4 of the pitch in the nominal profile.

16
Icon for insert size 16

Insert size

Edge 16 mm, IC 9.525 mm.
I
Internal thread icon

Internal thread

Turning inside holes with a boring bar.
R
Right-hand version icon

Right-hand version

SIR boring bar, feed toward the chuck.
0.75
Icon for 0.75 mm thread pitch

Thread pitch

0.75 mm; one insert for one pitch.
ISO
ISO metric profile icon

Metric profile

Angle 60°, full profile, class 6H.
BMA
BMA carbide grade icon

Carbide grade

Submicron, PVD TiAlN, P20–P40 and K20–K30.
Threads in the standard table require a smaller bore

Threads listed in the PN-ISO 261 table with a 0.75 mm pitch (from M4.5 to M11 × 0.75) have bores from 3.7 to 10.2 mm. This is less than Ø16 mm – the minimum bore for a boring bar using size 16 inserts. For these threads, select a miniature size 08 IR insert. The 16 IR 0.75 ISO insert cuts threads from M18 × 0.75 to M33 × 0.75, which the standard permits outside the table.

Mount the threading insert in right-hand SIR boring bars for size 16 inserts, e.g. SIR 0013 M16, SIR 0016 P16 or SIR 0020 P16. A right-hand internal insert works only in a right-hand boring bar.

The 16 IR 0.75 ISO BMA internal metric threading insert turns the full internal thread profile at a pitch of 0.75 mm in bores from Ø16 mm, always at the same infeed depth of 0.43 mm. It is suitable for threads with this pitch at larger diameters, including those outside the standard table.

16 IR 0.75 ISO – questions about selection and use

Key information before selecting an insert

The bore for a thread with a 0.75 mm pitch is 0.81 mm smaller than the thread diameter. A boring bar for size 16 inserts fits bores from Ø16 mm, so the smallest thread diameter is approximately 16.8 mm. The standard permits a 0.75 mm pitch outside the table up to a diameter of 33 mm, e.g. M18 × 0.75. Threads listed in the PN-ISO 261 table with a 0.75 mm pitch (from M4.5 to M11 × 0.75) have bores from 3.7 to 10.2 mm.

Yes. The full profile trims the thread crests at the bore diameter, e.g. 19.188 mm for M20 × 0.75. Simply bore the hole slightly undersize beforehand.

The total insert infeed depth for an internal thread is approx. 0.58 × P, or approx. 0.43 mm for a pitch of 0.75 mm. It is the same for every diameter with this pitch.

Right-hand SIR boring bars for size 16 inserts, e.g. SIR 0013 M16 (holes from Ø16 mm), SIR 0016 P16 (from Ø19 mm), SIR 0020 P16 (from Ø24 mm) or SIR 0025 R16 (from Ø29 mm).

Usually 4 to 7 passes; use 6 as a starting point. The range is interpolated from the manufacturer's table for adjacent pitches.
