Description
Technical data of insert for metric internal threads 3 mm
| Technical data | |
|---|---|
| Side length L | 16 mm |
| Thread profile | 60 degrees |
| Insert type | Metric thread Internal right/external left |
| Thread pitch range P | 3 mm |
| Example application | M24, M36x3, M39x3, M45x3, M48x3, M52x3 |
| Thread profile | Full ISO |
| Carbide grade MTA | Suitable for carbon steel, alloy steel, cast iron, stainless steel, cast steel, cast iron and non-ferrous metals |

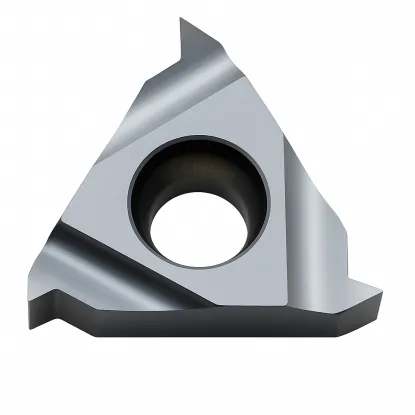

Insert for metric internal threads 16 IR 3 mm
MTA's 16 IR 3 ISO thread insert is designed for internal thread machining. It performs metric and fine internal right-hand thread s with a pitch of 3 mm on the lathe. ISO compliance and full 60-degree profile are the basis for precision.
It supports M24 metric threads and M36x3, M39x3, M42x3, M45x3, M48x3, M52x3 fine threads. A suitable chuck allows the tool to be used for left-hand external threads. Steel, aluminum, cast iron and cast steel are materials ideally suited for this insert. The MTA grade is distinguished by its stability and blade surface quality. A solution for medium and larger threaded holes in industrial production.
Key benefits of the 16 IR 3 mm ISO MTA insert
- Solid 60-degree profile means maximum accuracy and compliance with ISO standard
- MTA grade guarantees high quality finish on the threaded surface
- Flexibility to be used as an internal right or external left insert
- The 16 mm size provides an optimal ratio of stability to hole availability
This tool is valued in professional lathe threading of medium-sized mechanical structures. Machine parts manufacturing, steel industry, equipment service are the main areas of use. Workshops handling medium and large production runs benefit from the tool's flexibility. Choose the Horn MTA insert for superior internal thread machining. Increase the efficiency of your workshop by investing in a proven solution with a 3 mm pitch.
Cutting parameters for an internal insert right 16 IR pitch 3 mm
| ISO Symbol | Material | Cutting speed Vc [m/min] |
|---|---|---|
| P | Steel | 50-180 |
| M | Stainless steel | 50-90 |
| K | Cast iron | 65-120 |
| N | Aluminum and non-ferrous materials | 90-180 |
Number of recommended passes depending on thread pitch
| Pitch mm | 3 |
|---|---|
| Number of passes | 8-17 |
Frequently asked questions
1. What kind of threads can be made with the 16 IR 3 ISO MTA insert?
The tool supports metric and fine internal threads with a pitch of 3 mm. A solid 60-degree profile in accordance with ISO 68-1 guarantees precision. The range includes M24 as well as M36x3, M39x3, M42x3, M45x3, M48x3, M52x3. All threads requiring a pitch of 3 mm in the internal system.
2. How to use the insert for external threads?
The 16 IR insert can work in a left-hand external arrangement. The right chuck and the geometry of the toolholder are crucial for success. Precise setting of the rake angle ensures proper machining. The insert's versatility increases workshop flexibility for a variety of tasks.
3. What is the height of the turned thread outline for this insert?
H1 - Height of thread outline given in mm || P - pitch of thread given in mm
H1 = 0.54127 * P
For this pitch is: H1 = 0.54127 * 3 mm = 1.62 mm
