Description
Technical data of insert for metric threads 22 ER internal 4.5 mm
| Technical data | |
|---|---|
| Side length L | 22 mm |
| Thread profile | 60 degrees |
| Insert type | Metric Inside Right Thread |
| Thread pitch range P | 4.5 mm |
| Thread profile | Full ISO |
| Carbide grade MTA | Suitable for carbon steels, alloy steels, cast iron, stainless steels, cast iron and non-ferrous metals |

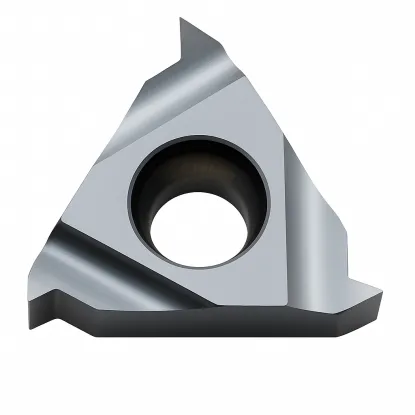

Carbide insert for threading 22 IR 4.5 ISO HTA Horn is a high-performance cutting tool designed for precision turning of metric internal threads with a 60-degree triangular profile. Thanks to the full profile, the insert forms the entire outline of the thread - from the bottom to the apex - ensuring compliance with the ISO standard, dimensional accuracy and a smooth surface of the workpiece.
Carbide insert it is dedicated to threads with a pitch of 4.5 mm, which allows for the production of large metric common threads (M) and fine threads (MF). The 22 IR geometry allows for efficient and repeatable turning of right-hand internal threads in serial and unit production.
Made of high-quality HTA carbide, the insert is characterized by high wear resistance and stable operation in machining carbon steels, alloy steels, cast iron, stainless steels and non-ferrous metals. The protective coating increases tool life and ensures reproducible thread quality even under demanding cutting conditions.
22 IR 4.5 ISO HTA Horn is used in lathe knives with a 22 mm socket, adapted for internal insert clamping. Clamping is done with a Torx M4x16 screw, which guarantees stability and safety of the machining process.
- Precision ISO internal threads - full profile ensures compliance with the standard and ideal thread shape.
- Stroke of 4.5 mm - the ability to machine large M and MF metric threads.
- Stable fastening - 22 mm socket and M4x16 Torx screw guarantee rigidity and secure operation.
- Durability and performance - HTA carbide and protective coating increase tool life.
Carbide insert 22 IR 4.5 ISO HTA Horn is a reliable solution for production shops looking for the highest precision, stability and efficiency in turning internal threads.
Cutting parameters for the 22 IR insert pitch 4.5 mm Horn
| ISO Symbol | Material | Cutting speed Vc [m/min] |
|---|---|---|
| P | Steel | 50-180 |
| M | Stainless steel | 50-90 |
| K | Cast iron | 65-120 |
| N | Aluminum and non-ferrous materials | 90-180 |
Frequently asked questions
How many passes of the insert are necessary to obtain a thread?
The manufacturer recommends: to make a thread with a pitch of 4.5 mm, you need to make between 10 and 20 passes.
To which turning knives does the insert fit?
Carbide insert it is compatible with most standard turning knives for internal right-hand threads, equipped with a socket for inserts of 22 mm.
What threads can be turned with this insert?
Carbide insert allows cutting metric threads with a pitch of 4.5 mm regardless of the thread diameter.
What does full thread profile mean?
Full thread profile means that the cutting edge of the insert reproduces the entire outline of the thread - both the angle and its base and apex. As a result, a thread made with a full-profile insert immediately has the correct shape according to the standard, without the need for additional machining of the diameter. This solution provides greater accuracy, a smooth thread surface and dimensional repeatability, which translates into a stable machining process and a better fit of parts.
What is the height of the turned thread outline
H1 - Thread outline height given in [mm] || P - thread pitch given in [mm]
H1 [mm]=0.54127*P
H1=0.54*4.5mm=2.43mm
