Technical data of insert for inch external threads G
| Technical data | |
|---|---|
| Side length L | 16 mm |
| Thread profile | 55 degrees |
| Insert type | External Right / Internal Left Inch Thread |
| Thread pitch range P | 0.5 to 3.0 mm |
| Application examples | G1/8, G1/4, G3/8, G1/2, G5/8, G1.1/4 |
| Thread profile | partial G |
| Carbide grade MTA | Suitable for carbon steel, alloy steel, cast iron, stainless steel, cast steel, cast iron and non-ferrous metals |
Inch thread insert AG55 - universal machining 0.5-3 mm

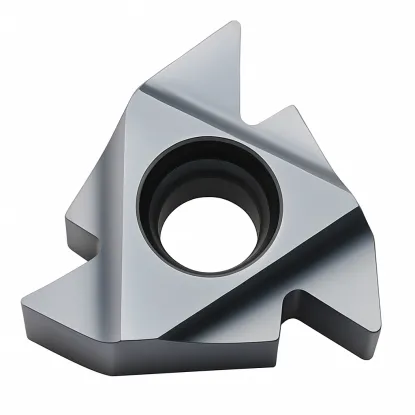

The 16 ER AG55 MTA thread insert is a universal turning tool. It is used for making inch external threads in the pitch range of 0.5-3.0 mm on the lathe. Designed primarily for G pipe threads conforming to DIN ISO 228, the AG55 profile with a 55-degree angle allows threading different pitches with one insert. It also works well for threading Whitworth BSW and BSF with the same angle. The insert can be used interchangeably as an internal left for inch threads. The MTA Horn grade provides durability and precision for machining steel, aluminum and cast iron. Ideal for workshops requiring flexibility in inch threading.
Key benefits of the 16 ER AG55 MTA insert
- AG55 universal profile supports a pitch range of 0.5 to 3.0 mm
- Dedicated to G pipe threads conforming to DIN ISO 228 and Whitworth BSW, BSF
- Can be interchangeably used as external right and internal left insert
- MTA grade Horn provides long blade life and cutting stability
- Compatible with 16 mm toolholders - quick installation in standard turning knives
The insert is chosen by professionals for the versatility of inch threading on the lathe. It will prove useful in the production of pipe connections, hydraulic installations, equipment repairs and the manufacture of threaded parts. Ideal for mechanical workshops, technical services and production requiring flexible machining of different pitches. Bet on quality confirmed by specialists in the machining industry. Order Horn AG55 insert to improve threading in your workshop.
Cutting parameters for external insert right 16 ER pitch 0,5- 3 mm
| ISO symbol | Material | Cutting speed Vc [m/min] |
|---|---|---|
| P | Steel | 50-180 |
| M | Stainless steel | 50-90 |
| K | Cast iron | 65-120 |
| N | Aluminum and non-ferrous materials | 90-180 |
Number of recommended passes depending on thread pitch
| Pitch mm [TPI zwoje] | 0,5-[48] | 0,8-[32] | 10-[24] | 1,25-[20] | 1,5-[16] | 1,75-[14] | 2,0-[12] | 2,5-[10] | 3,0-[8] |
|---|---|---|---|---|---|---|---|---|---|
| Number of transitions | 3-6 | 4-7 | 4-9 | 6-10 | 5-11 | 9-12 | 6-13 | 7-15 | 8-17 |
Frequently asked questions
1. What threads is the 16 ER AG55 MTA insert suitable for?
The insert is mainly designed for inch G threads conforming to DIN ISO 228. The AG55 profile with a 55-degree angle supports a pitch range of 0.5-3.0 mm. You can make a variety of G pipe threads as well as Whitworth BSW and BSF. The universal profile allows you to machine many different inch threads with one insert.
2. How is the AG55 profile different from a full profile?
The AG55 profile is a partial profile, universal for the 0.5-3.0 mm pitch range. The full profile insert is dedicated for one specific thread pitch. The partial profile is more flexible, but the full profile offers higher quality. AG55 is ideal for workshops working with a variety of inch thread pitches.
3. Can the insert be used for internal threads?
Yes, the 16 ER AG55 MTA insert can be used interchangeably. It works as an internal left-hand insert for threading inch threads. It requires a suitable toolholder and correct tool setting on the lathe. This makes it a universal solution for external and internal threading.
4. How to calculate the height of the thread profile ?
H1 - Height of the thread outline given in [mm] || P - pitch of the thread given in [mm]
H1 [mm] = 0.6403 × P
