Description
Technical data of carbide cutter fi 16
| Technical data | |
|---|---|
| Working diameter d1 | 16 mm |
| Shank diameter d2 | 16 mm |
| Length of working part l2 | 40 mm |
| Overall length l1 | 100 mm |
| Number of blades | 4 |
Cutting parameters of carbide cutter fi 16 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] | Revolutions n [obr/min] | Total feed [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 60-75 | 0,076-0,109 | 1194 | 363 |
| M | Stainless steel | 50 | 0,028 | 995 | 111 |
| K | Cast iron | 87-100 | 0,054-0,063 | 1732 | 374 |
| N | Aluminum | 167 | 0,073 | 3324 | 971 |
| H | Hardened materials | 40 | 0,039 | 796 | 124 |

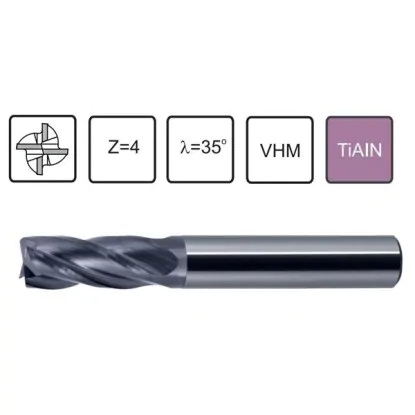

Pitchfork milling cutter fi 16 VHM
VHM millingcutter fi 16 mm diameter D-16 Z-4 cylindrical face full carbide, with TiAIN coating, fine-grained universal carbide, with smooth cylindrical shank DIN6535 HA.
Carbide 16 VHM,widia milling cutter is designed for professional profiling, cuttingcanals, copying, drilling and grooving. We offer you professional VHM 45 HRC burrs made of universal fine-grain carbide. These are solid carbide face milling cutters with TiAIN coating and smooth DIN6535 HA cylindrical shank. Their advantage is high resistance to heavy cutting conditions and also increased resistance to any mechanical damage. Carbide fi 16 fork milling cutters are suitable for machining hard alloy steels, stainless steel, acid-resistant steel, heat-resistant steel, cast steel, cast iron and surface-hardened materials. The milling cutters are recommended for various types of machine tools, including both modern machines with higher rigidity and conventional machine tools.
