Description
Technical data of carbide cutter fi 4
- working diameter d1 - 4 mm,
- shank diameter d2 - 4 mm,
- length of the working part l - 10 mm,
- total length l1 - 50 mm,
- number of blades - Z - 4.
Cutting parameters of carbide cutter fi 4 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] |
|---|---|---|---|
| P | Steel | 60÷75 | 0,018÷0,025 |
| M | Stainless steels | 50 | 0,016 |
| K | Cast iron | 87÷100 | 0,021÷0,022 |
| N | Aluminum | 167 | 0,028÷0,035 |
| H | Hardened materials | 40 | 0,021 |

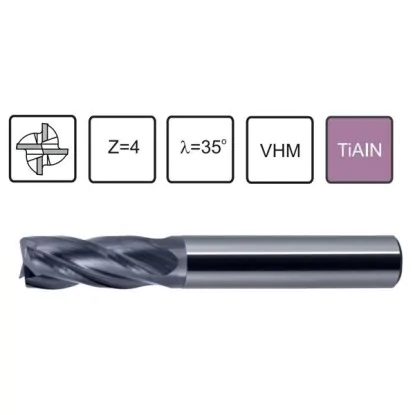

Pitchfork milling cutter fi 4 VHM
VHM millingcutter fi 4 mm diameter D-4 Z-4 cylindrical face full carbide, with TiAIN coating, fine-grain universal carbide, with smooth cylindrical shank DIN6535 HA.
Carbide cutter 4 VHM, in dimensions D-4, Z-4. It is end mill, cylindrical face full carbide, with special TiAIN coating and smooth cylindrical shank DIN6535 HA. The cutter is characterized by enhanced cutting properties due to the properties of special fine-grain carbide. It is a carbide with increased wear resistance, better impact strength and higher chemical resistance. In addition, it also features good adhesion to the substrate, increased strength, and resistance to oxidation. These unique features contribute to better machining and higher cutting performance. Carbide milling cutters fi 4 are suitable for drilling, profiling, making channels and grooves, as well as for copying. The milling cutters we offer are recommended for cutting hard alloy steels, stainless steel, acid-resistant steel, heat-resistant steel, heat-resistant steel, cast steel and cast iron. Recommended for various types of machine tools (including conventional ones).
