Description
Technical data of carbide cutter fi 10
| Technical data | |
|---|---|
| Working diameter d1 | 10 mm |
| Shank diameter d2 | 10 mm |
| Length of working part l2 | 25 mm |
| Overall length l1 | 75 mm |
| Number of blades | 4 |
Cutting parameters of carbide cutter fi 10 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] | Revolutions n [obr/min] | Total feed [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 60-75 | 0,060-0,086 | 1911 | 459 |
| M | Stainless steel | 50 | 0,025 | 1592 | 159 |
| K | Cast iron | 87-100 | 0,035-0,055 | 2771 | 388 |
| N | Aluminum | 167 | 0,050 | 5318 | 1064 |
| H | Hardened materials | 40 | 0,027 | 1274 | 138 |

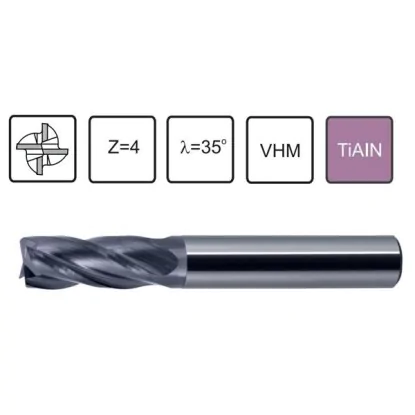

VHM milling cutter fi 10 VHM
Fi 10 mm VHM cutter Z-4 cylindrical face full carbide, with TiAIN coating, fine-grain universal carbide, with smooth cylindrical shank DIN6535 HA.
Carbide 10 VHM, widia milling cutter with smooth cylindrical shank DIN6535 HA, designed for professional machining of very hard and hard-to-machine materials such as alloy steels, alloy steels, stainless steels, acid-resistant steel, heat-resistant steel, cast steel, cast iron and surface-hardened materials. NHM 45 HRC burrs are solid carbide cylindrical milling cutters with TiAIN coating. A special fine-grained carbide was used in the production of the milling cutters, the main advantage of which is increased resistance to very heavy cutting conditions. Carbide milling cutters fi 10 with innovative coating make it possible to increase cutting efficiency and improve its quality. In addition, they retain hardness even at high temperatures. Increased resistance of milling cutters to heavy cutting conditions, significantly increases their resistance to mechanical damage, and thus extends their service life.
