Description

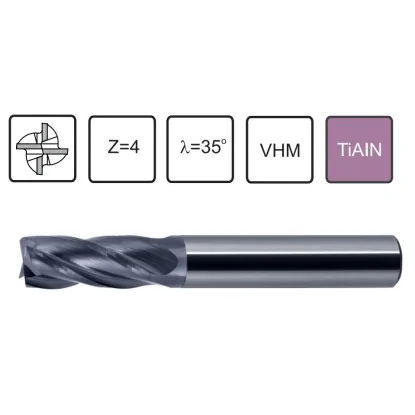

Technical data of carbide cutter fi 5
- working diameter d1 - 5 mm,
- shank diameter d2 - 5 mm,
- length of working part l2 - 15 mm,
- total length l1 - 50 mm,
- number of blades - Z - 4.
Cutting parameters of carbide cutter fi 5 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] |
|---|---|---|---|
| P | Steel | 60÷75 | 0,027÷0,039 |
| M | Stainless steels | 50 | 0,018 |
| K | Cast iron | 87÷100 | 0,025÷0,026 |
| N | Aluminum | 167 | 0,032÷0,039 |
| H | Hardened materials | 40 | 0,025 |
Pitchfork milling cutter fi 5 VHM
VHM millingcutter fi 5 mm diameter D -5 Z-4 cylindrical face full carbide, with TiAIN coating, fine-grained universal carbide, with smooth cylindrical shank DIN6535 HA.
Carbide cutter 5 VHM, widia, face cylindrical, with dimensions D-5, Z-4. It is end mill with cylindrical shank, made of fine-grain carbide VHM 45 HRC. Milling cutters of this type are recommended for professional machining of hard and hard-to-machine materials such as alloy steels, stainless steel, acid-resistant steel, heat-resistant steel, cast steel, cast iron and other materials with hardened surface. The offered carbide fi 5 shank milling cutters are dedicated to high-performance and high-precision machining. The use of sintered carbide for production affects the possibility of obtaining a very good quality of machining. The milling cutters are resistant to high temperatures resulting from cutting at high speeds. In addition, they are characterized by better cutting parameters, higher strength and wear resistance, better chemical resistance, good adhesion to the substrate and good impact strength. Recommended for professional high-performance machining.
