Description
Technical data for carbide end mill Ø8
| Technical data | |
|---|---|
| Working diameter d1 | 8 mm |
| Shank diameter d2 | 8 mm |
| Flute length l2 | 20 mm |
| Overall length l1 | 63 mm |
| Number of cutting edges | 4 |
Cutting data for carbide end mill Ø8 mm 45 HRC
| Material | Cutting speed Vc [m/min] | Feed per tooth fz [mm] | Spindle speed n [rpm] | Total feed rate [mm/min] |
|---|---|---|---|---|
| PSteel | 60-75 | 0.060-0.086 | 2387 | 573 |
| MStainless steel | 50 | 0.025 | 1989 | 199 |
| KCast iron | 87-100 | 0.035-0.055 | 3461 | 485 |
| NAluminum | 167 | 0.050 | 6645 | 1329 |
| HHardened Materials | 40 | 0.027 | 1592 | 172 |

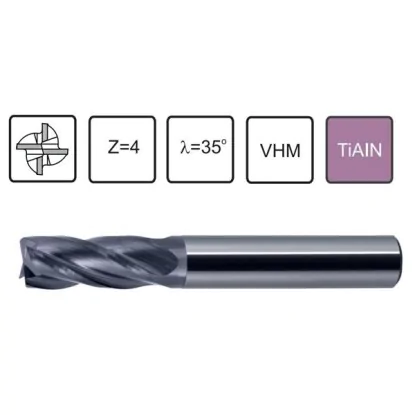

Solid carbide (VHM) end mill Ø8
Solid carbide end mill Ø8 mm Z-4, with TiAlN coating, universal fine-grain carbide, and a plain straight shank to DIN6535 HA.
Carbide end mill 8 in solid carbide (VHM), with a plain straight shank to DIN6535 HA, is designed for professional machining of difficult-to-machine materials — alloy steels, stainless and acid-resistant steels, cast steel, gray cast iron, and surface-hardened materials up to 45 HRC. The four-flute Z-4 design ensures even distribution of cutting forces and high surface quality when milling contours and pockets. The tool is made from special fine-grain carbide with increased resistance to cracking and vibration during side milling. Carbide end mills Ø8 with an innovative TiAlN coating retain a hardness of 3300 HV at operating temperatures up to 800°C, directly extending cutting edge life. The tool is used in toolrooms producing injection molds and stamping dies, as well as in maintenance departments servicing CNC machining centers.
