Description
Technical data of carbide cutter fi 18
| Technical data | |
|---|---|
| Working diameter d1 | 18 mm |
| Shank diameter d2 | 18 mm |
| Length of working part l2 | 45 mm |
| Overall length l1 | 100 mm |
| Number of blades | 2 |
Cutting parameters of carbide cutter fi 18 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] | Revolutions n [obr/min] | Total feed [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 60-70 | 0,085-0,121 | 1062 | 181 |
| M | Stainless steel | 50 | 0,016 | 885 | 28 |
| K | Cast iron | 87-100 | 0,057-0,075 | 1539 | 175 |
| N | Aluminum | 150 | 0,09 | 2654 | 478 |
| H | Hardened materials | 40 | 0,049 | 708 | 69 |

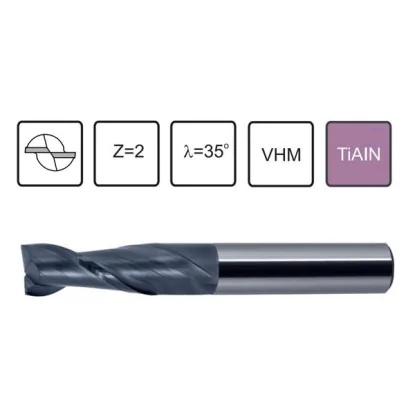

Pitchfork milling cutter fi 18 VHM
VHM millingcutter fi 18 mm diameter D -1 Z-2 cylindrical full carbide, with TiAIN coating, fine-grain universal carbide, with smooth cylindrical shank DIN6535 HA.
Carbide 18 VHM, full carbidecutter with a diameter of D-18, Z-2. It is end mill designed for professional copying, profiling, making channels and grooves and also for drilling machining. The cutter is made of fine-grained TiAIN-coated carbide, with a smooth DIN6535 HA cylindrical shank. The milling cutter has the advantage of high machining efficiency and the possibility of high cutting accuracy. The use of a special type of sintered carbide with increased wear resistance prolongs the service life of the cutters and causes greater working comfort. Carbide cutters fi 18 are characterized by high abrasion resistance, even at high temperature, good chemical resistance, low coefficient of friction and good adhesion to the substrate. They are recommended for professional machining carried out on various types of conventional machine tools and on modern machine tools with high rigidity.
