Description
Technical data of carbide roughing cutter fi 16 mm
| Technical data | |
|---|---|
| Working diameter d1 | 16 mm |
| Shank diameter d2 | 16 mm |
| Length of working part l2 | 40 mm |
| Overall length l1 | 100 mm |
| Number of blades | 4 |
Coarse cutting parameters of carbide cutter fi 16 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] | Revolutions n [obr/min] | Total feed [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 65-135 | 0,028-0,056 | 1294 | 145 |
| M | Stainless steel | 55 | 0,028 | 1095 | 123 |
| K | Cast iron | 100-145 | 0,042-0,058 | 1990 | 334 |
| H | Hardened Materials | 113-123 | 0,037 | 2249 | 333 |

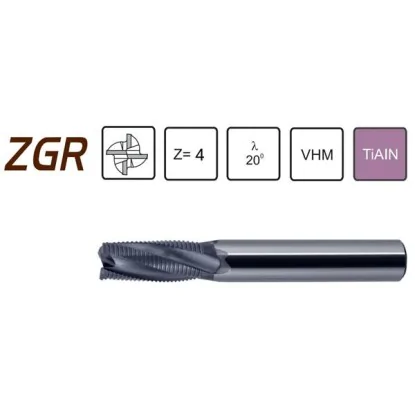

Widia milling cutter rough fi 16 VHM with chipbreaker
The cutter rough fi 16 mm VHM, fork milling cutter with face cylindrical shank, size D-16 Z-4. It is end mill made of high-performance fine-grain carbide. It is suitable for professional machining using machine tools with higher rigidity (with a small runout not exceeding 0.01 mm) as well as conventional machine tools.
The carbide milling cutters we offer are characterized by better cutting parameters than milling cutters made of high-speed steel. Carbide is the material with the highest hardness and strength. Thanks to its properties, rough milling cutters fi 16 mm with chipbreaker are characterized by increased wear resistance and higher impact strength, which allows better cutting parameters. In addition, they are resistant to oxidation, retain hardness even at high temperatures, have good chemical resistance and a low coefficient of friction. They are recommended for profiling, copying, line machining, making and grooving.
