Description
Technical data of carbide cutter fi 25
- working diameter d1 - 25 mm,
- shank diameter d2 - 25 mm,
- length of the working part l2 - 45 mm,
- total length l1 - 100 mm,
- number of blades - Z - 4.
Cutting parameters of carbide cutter fi 25 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] |
|---|---|---|---|
| P | Steel | 60÷75 | 0,095÷0,136 |
| M | Stainless steels | 50 | 0,030 |
| K | Cast iron | 87÷100 | 0,060÷0,079 |
| N | Aluminum | 167 | 0,089 |
| H | Hardened materials | 40 | 0,044 |

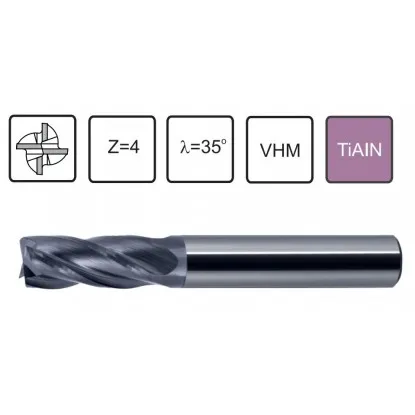

Carbide end mill 25 VHM
Carbide end mill 25 Z-4 VHM 45 HRC is a solid carbide (VHM) milling cutter for machining carbon and low-alloy steels, austenitic stainless steels, and gray and ductile iron with hardness up to 45 HRC.
The fi 25 diameter increases rigidity and reduces deflection at large milling widths, making it easier to maintain tolerances on planes and contours in roughing and semi-finishing operations.
The Z-4 layout provides four active blades, even force distribution and predictable chip form, making the cutter suitable for planing, side milling, pockets and grooves on CNC centers.
Benefits
- Diameter fi 25 - high rigidity - less deflection of the cutter stabilizes the process and makes it easier to maintain part geometry.
- Z-4 configuration - even loading - four blades reduce vibration and allow increased feed per tooth while maintaining finish quality.
- VHM up to 45 HRC - wide range of materials - effective machining of typical structural steels, austenitic stainless steels and cast iron.
- Surface quality control - stable roughness and predictable chip shape promote dimensional repeatability in batch production.
Carbide end mill 25 Z-4 VHM 45 HRC is recommended for efficient planning and side milling when process stability and consistent surface quality are key.
