Description
Technical data of carbide cutter fi 22
- working diameter d1 - 22 mm,
- shank diameter d2 - 22 mm,
- length of the working part l2 - 45 mm,
- total length l1 - 100 mm,
- number of blades - Z - 4.
Cutting parameters of carbide cutter fi 22 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] |
|---|---|---|---|
| P | Steel | 60÷75 | 0,095÷0,136 |
| M | Stainless steels | 50 | 0,030 |
| K | Cast iron | 87÷100 | 0,060÷0,079 |
| N | Aluminum | 167 | 0,089 |
| H | Hardened materials | 40 | 0,044 |

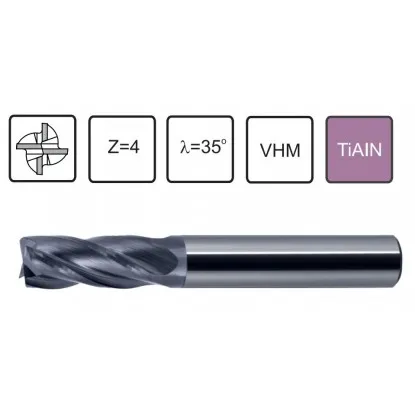

Carbide end mill 22 VHM
Carbide end mill 22 Z-4 VHM 45 HRC is a solid carbide (VHM) cutter for machining structural and alloy steels, austenitic stainless steels and cast iron with hardness up to 45 HRC. The Z-4 configuration provides four effective cutting edges, which promotes uniform loading and stable operation in roughing and semi-finishing operations.
The fi 22 diameter increases the rigidity of the cutter and reduces deflection at wider milling widths, making it easier to maintain dimensional tolerances on planes and contours. The cutter works well in planing, side milling, pocketing and grooving, providing predictable chip form and controlled roughness in CNC center work.
Benefits
- Diameter fi 22 - high rigidity - less cutter deflection and more stable machining at wider milling widths.
- Z-4 configuration - four blades reduce cutter vibration and allow increased feed per tooth without compromising finish quality.
- VHM up to 45 HRC - efficient machining of carbon, low-alloy and austenitic stainless steels, as well as gray and ductile iron.
- Repeatability and accuracy - stable chip shape and smooth surfaces make it easier to maintain tolerances in batch machining.
Carbide end mill 22 Z-4 VHM 45 HRC is recommended for efficient planing and side milling in steel and cast iron when process predictability and consistent surface quality are required.
